NXN1.00GN25
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires - Management / Spiral Wrap, Expandable Sleeving
Description

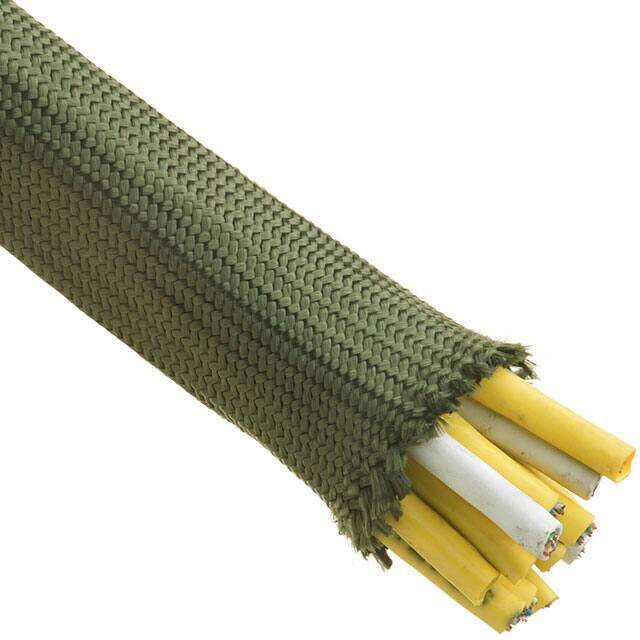

SLEEVING 1" X 25' GREEN
PDF
/
Buying Options
Total Price: USD $139.74
Unit Price: USD $139.735886
≥1 USD $139.735886
Inventory: 6654
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Diameter - Inside, Expanded 1.125 (28.58mm)
Diameter - Inside, Non-Expanded 1.000 (25.40mm)
Wall Thickness 0.016 0.40mm
Length 25.00' 7.62m
Diameter 25.4mm
Technical
Heat Protection Flame Resistant, Heat Resistant
Liquid Protection Gasoline Resistant
Abrasion Protection Abrasion and Cut Resistant
Type Attributes Expandable
Color Green
Type Sleeve
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Acid Resistant, Clean Cut, Chemical Resistant, Self Extinguishing, Solvent Resistant
Series Aramid Flexo? NX?
Operating Temperature -60°C~220°C
Physical
Material Polyaramid Polymetaphenylene Isophthalamide, Halogen Free
Supply Chain
Factory Lead Time 4 Weeks
