170-03059
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires - Management / Spiral Wrap, Expandable Sleeving
Description

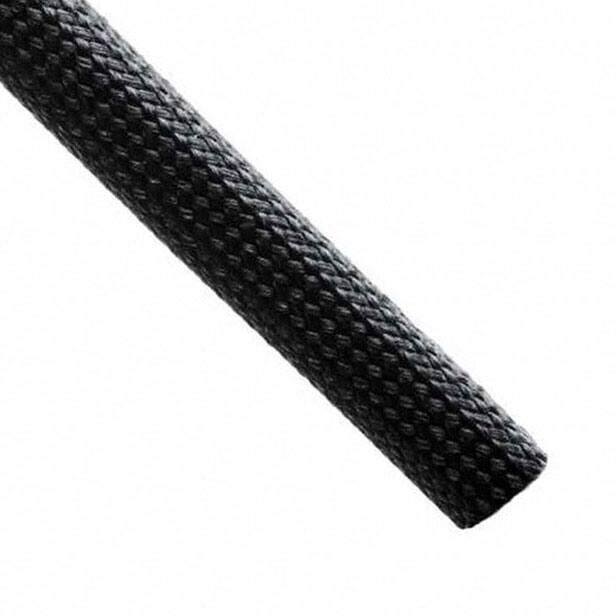

HIGH TEMP RESIN FIBERGLASS SLEEVING
PDF
/
Buying Options
Total Price: USD $155.27
Unit Price: USD $155.268806
≥1 USD $155.268806
Inventory: 4792
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL VW-1
Dimensions
Diameter - Outside, Non-Expanded 0.500 (12.70mm)
Diameter - Inside, Expanded 0.750 (19.05mm)
Diameter - Inside, Non-Expanded 0.408 (10.36mm)
Wall Thickness 0.046 1.17mm
Length 50.00' 15.24m
Technical
Heat Protection Flame Retardant, Heat Resistant
Abrasion Protection Abrasion Resistant
Type Attributes Expandable
Color Black
Type Sleeve
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Clean Cut, Vibration Resistant
Series BSHTFG
Operating Temperature -70°C~650°C
Physical
Material Fiberglass, Resin Coated, Halogen Free
Supply Chain
Factory Lead Time 3 Weeks
