170-03050
RoHS
RoHS compliant
RoHS compliantPackage 200
Category Cables, Wires - Management / Spiral Wrap, Expandable Sleeving
Description

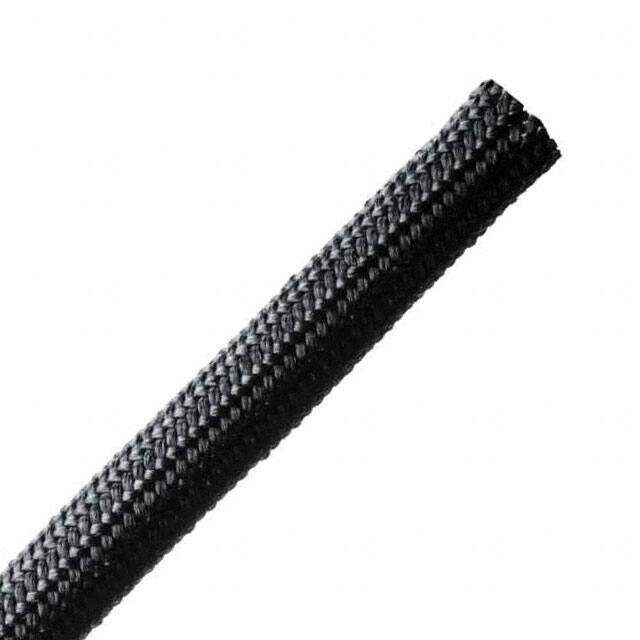

SLEEVING 0.188" X 200' BLACK
PDF
/
Buying Options
Total Price: USD $221.82
Unit Price: USD $221.819707
≥1 USD $221.819707
Inventory: 3312
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Package / Case 200
Material Fiberglass, Resin Coated, Halogen Free
Technical
Operating Temperature -70°C~650°C
Published 2015
Series BSHTFG
Feature Clean Cut, Vibration Resistant
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Sleeve
Color Black
Type Attributes Expandable
Abrasion Protection Abrasion Resistant
Heat Protection Flame Retardant, Heat Resistant
Dimensions
Length 200' 60.96m
Wall Thickness 0.031 0.79mm
Diameter - Inside, Non-Expanded 0.188 (4.78mm)
Diameter - Inside, Expanded 0.375 (9.52mm)
Diameter - Outside, Non-Expanded 0.250 (6.35mm)
Compliance
Material Flammability Rating UL VW-1
RoHS Status RoHS Compliant
