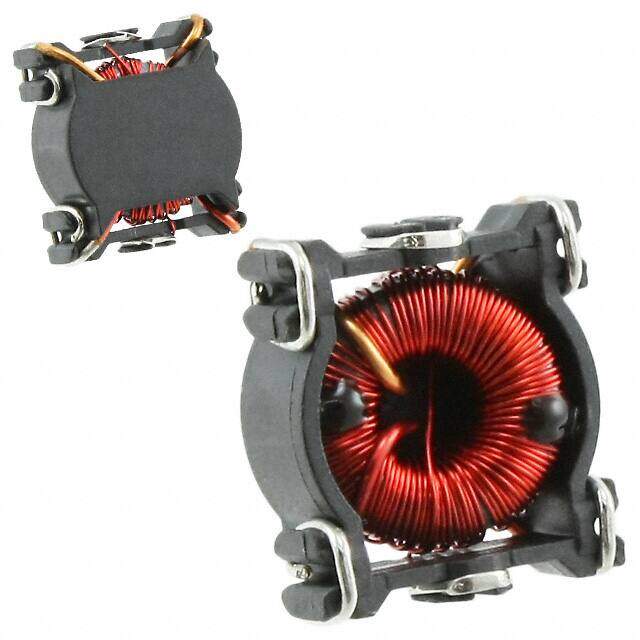

PE-65812NL image
Favorite
PE-65812NL image
Favorite
RoHS
RoHS RoHS compliant
Package SMD/SMT
Category Transformers / Specialty Transformers
Description XFRMR DIGITAL AUDIO 1:1 2.5MH
PDF
/
Buying Options
Total Price: USD $5.02
Unit Price: USD $5.016
≥1 USD $5.016
≥10 USD $4.06824
≥100 USD $3.08132
≥500 USD $2.94272
≥1000 USD $2.856198
≥3000 USD $2.76965
Inventory: 413
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 10.16mm
Height Seated (Max) 0.340 8.64mm
Height 8.64mm

Technical

Pulse Rise Time-Max 25ns
ET Product-Min 20 V-us
Number of Primary Winding 1
Number of Secondary Winding 1
Return Loss 20 dB
Turns Ratio - Primary:Secondary 1:1
Transformer Type TELECOM TRANSFORMER
Isolation Voltage 2kV
Insertion Loss 3 dB
Application SIGNAL
Lead/Base Style Gull Wing
Inductance 2.5mH
Approval Agency UL
Frequency 55MHz
Depth 12.06mm
Shielding Unshielded
Subcategory Other Transformers
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Silver (Sn/Ag) - hot dipped
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.475Lx0.460W 12.07mmx11.68mm
Published 2006
Packaging Tube

Physical

Number of Pins 8
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 9 Weeks
