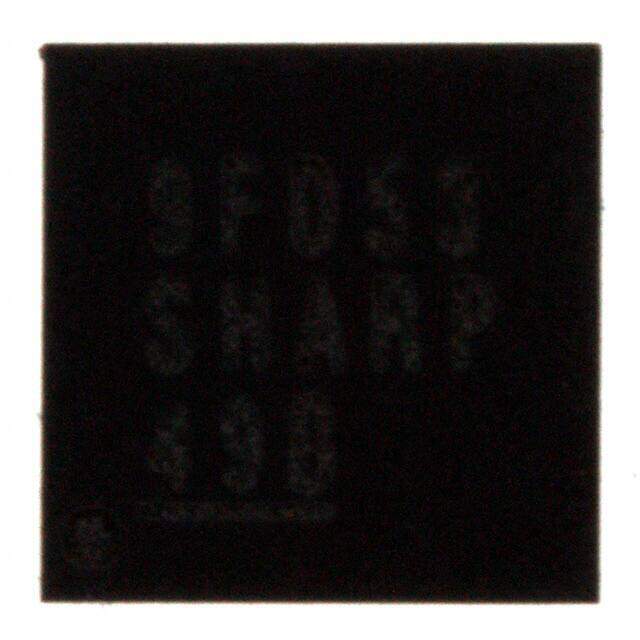

LZ9FD534
RoHS
/
Package 28-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Specialized ICs
Description
ASIC FOR LQ030B7DD01 TFT DISPLAY
PDF
/
Buying Options
Total Price: USD $6.49
Unit Price: USD $6.4904
≥1 USD $6.4904
≥10 USD $5.3257
≥100 USD $5.15945
≥500 USD $4.9932
≥1000 USD $4.82695
Inventory: 17507
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 5mm
Length 5mm
Height Seated (Max) 0.95mm
Technical
Supply Voltage-Min (Vsup) 2.6V
Temperature Grade OTHER
Supply Voltage-Max (Vsup) 3.6V
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Reach Compliance Code unknown
Terminal Pitch 0.5mm
Supply Voltage 3V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Terminal Finish NICKEL PALLADIUM GOLD
Type Timing Control
Number of Terminations 28
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e4
Published 2004
Packaging Cut Tape (CT)
Physical
Number of Pins 28
Package / Case 28-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
