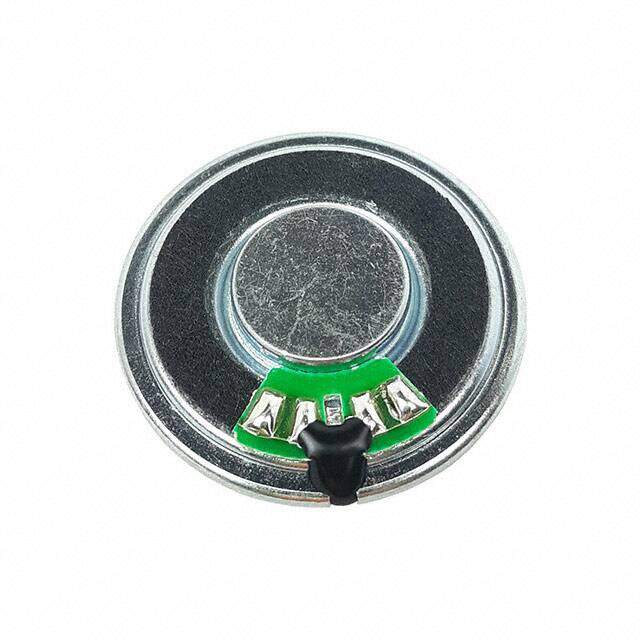

WSPH-3005 image
Favorite
WSPH-3005 image
Favorite

WSPH-3005

Soberton Inc.
RoHS
RoHS RoHS compliant
Package /
Category Audio Products / Speakers
Description IP65 SPEAKER, 90DB SENSITIVITY,
PDF
/
Buying Options
Total Price: USD $2.69
Unit Price: USD $2.6928
≥1 USD $2.6928
≥10 USD $2.22904
≥100 USD $2.05744
≥500 USD $1.933184
≥1000 USD $1.813592
≥3000 USD $1.678582
Inventory: 159
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B

Technical

Operating Temperature -20°C~60°C
Size / Dimension 1.181Dia 30.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Pads
Type General Purpose
Technology Magnetic
Ingress Protection IP67 - Dust Tight, Waterproof
Impedance 16Ohm
Frequency - Self Resonant 800Hz
Power - Max 500mW
Frequency Range 0Hz~20kHz
Power - Rated 250mW
Port Location Top
Efficiency - dBA 90.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 100mW/100mm

Dimensions

Height Seated (Max) 0.209 5.30mm

Compliance

RoHS Status ROHS3 Compliant
