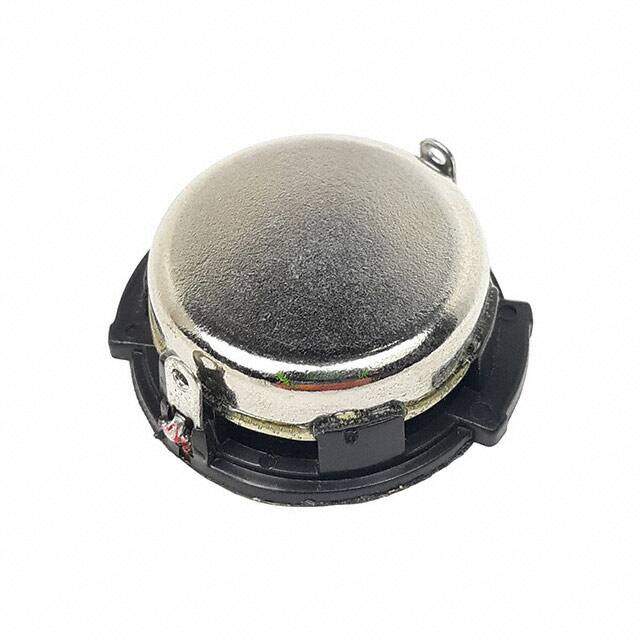

SP-3114Y
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER, 82DB SENSITIVITY, 31MM
PDF
/
Buying Options
Total Price: USD $4.2
Unit Price: USD $4.1976
≥1 USD $4.1976
≥10 USD $3.46192
≥100 USD $3.365824
Inventory: 47
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.571 14.50mm
Technical
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 82.00
Port Location Top
Power - Rated 2W
Frequency Range 0Hz~20kHz
Power - Max 3W
Frequency - Self Resonant 270Hz
Impedance 8Ohm
Technology Magnetic
Type General Purpose
Termination Quick Connect
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 1.220Dia 31.00mm
Series SP Micro Speaker
Operating Temperature -20°C~60°C
Physical
Material - Magnet Nd-Fe-B
Shape Round
Supply Chain
Factory Lead Time 8 Weeks
