SP-2806Y
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description

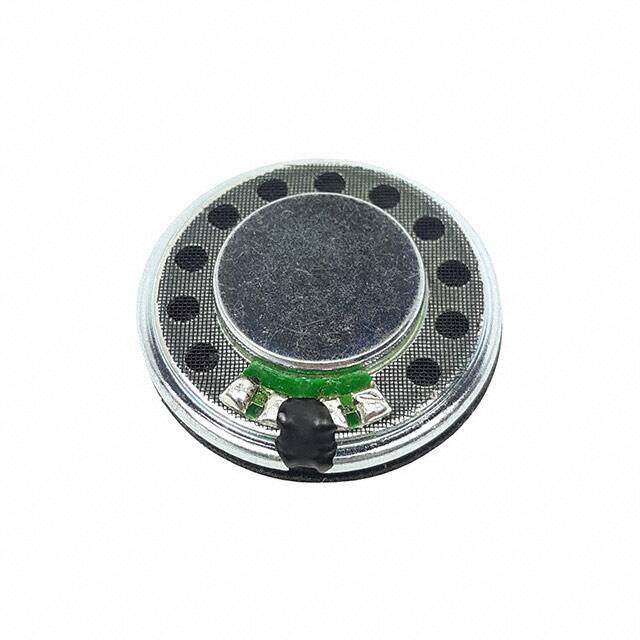

SPEAKER, 90DB SENSITIVITY, 28MM
PDF
/
Buying Options
Total Price: USD $3.19
Unit Price: USD $3.1856
≥1 USD $3.1856
≥10 USD $2.63736
≥100 USD $2.433376
≥500 USD $2.28536
≥1000 USD $2.142932
≥3000 USD $1.990912
Inventory: 157
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Shape Round
Technical
Operating Temperature -20°C~60°C
Series SP Micro Speaker
Size / Dimension 1.102Dia 28.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Pads
Type General Purpose
Technology Magnetic
Impedance 8Ohm
Frequency - Self Resonant 450Hz
Power - Max 1.5W
Frequency Range 400Hz~20kHz
Power - Rated 1W
Port Location Top
Efficiency - dBA 90.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 100mW/100mm
Dimensions
Height Seated (Max) 0.256 6.50mm
Compliance
RoHS Status ROHS3 Compliant
