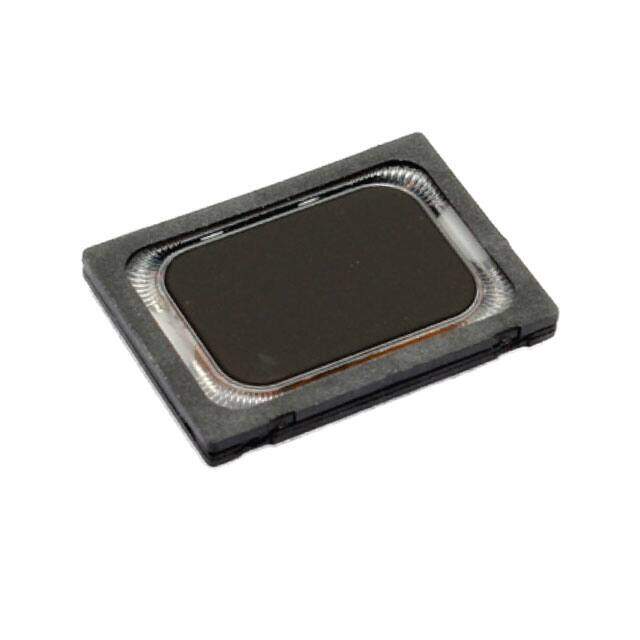

SP-1813S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 500MW TOP PORT 85DB
PDF
/
Buying Options
Total Price: USD $1.97
Unit Price: USD $1.9712
≥1 USD $1.9712
≥10 USD $1.63416
≥100 USD $1.550912
Inventory: 430
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 11mm
Length 15mm
Height Seated (Max) 0.165 4.20mm
Height 4.2mm
Technical
Efficiency - Testing 100mW
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 85.00
Port Location Top
Power - Rated 500mW
Frequency Range 200Hz~3.4kHz
Power - Max 700mW
Frequency - Self Resonant 800Hz
Impedance 8Ohms
Technology Magnetic
Max Power Dissipation 700mW
Power Rating 500mW
Type General Purpose
Termination Spring Type
Part Status Active
Size / Dimension 0.709Lx0.512W 18.00mmx13.00mm
Series SP Micro Speaker
Published 2016
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Shape Rectangular
Supply Chain
Factory Lead Time 10 Weeks
