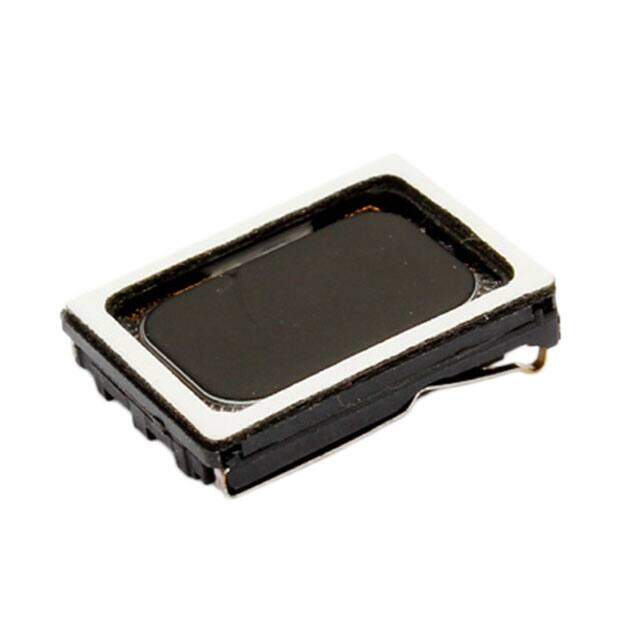

SP-1511S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 700MW TOP PORT 83DB
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.364
≥1 USD $1.364
≥10 USD $1.13432
≥100 USD $1.047904
≥500 USD $1.045
Inventory: 37
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Shape Rectangular
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Published 2016
Series SP Micro Speaker
Size / Dimension 0.591Lx0.433W 15.00mmx11.00mm
Part Status Active
Termination Spring Type
Type General Purpose
Power Rating 700mW
Max Power Dissipation 1W
Technology Magnetic
Impedance 8Ohms
Frequency - Self Resonant 850Hz
Power - Max 1W
Frequency Range 200Hz~3.4kHz
Power - Rated 700mW
Port Location Top
Efficiency - dBA 83.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 100mW
Dimensions
Height 4.5mm
Height Seated (Max) 0.177 4.50mm
Length 15mm
Width 11mm
Compliance
RoHS Status ROHS3 Compliant
