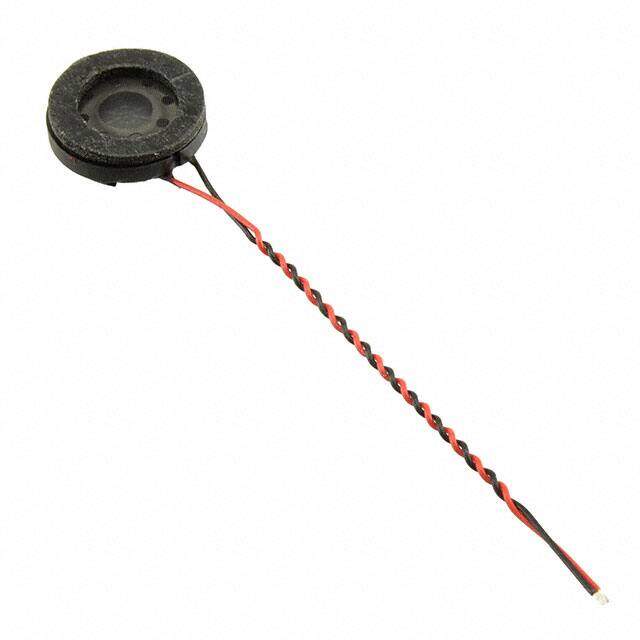

SP-1504
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 800MW TOP PORT 90DB
PDF
/
Buying Options
Total Price: USD $1.79
Unit Price: USD $1.7864
≥1 USD $1.7864
≥10 USD $1.48632
≥100 USD $1.373504
≥500 USD $1.291664
≥1000 USD $1.212728
≥3000 USD $1.123619
Inventory: 1200
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.248 6.30mm
Height 4mm
Technical
Efficiency - Testing 100mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 93.00
Port Location Top
Power - Rated 800mW
Frequency Range 300Hz~8kHz
Power - Max 800mW
Frequency - Self Resonant 1000Hz
Impedance 8Ohms
Technology Magnetic
Max Power Dissipation 1W
Power Rating 800mW
Resistance 8Ohm
Type General Purpose
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.591Dia 15.00mm
Series SP Micro Speaker
Published 2013
Packaging Tray
Physical
Material - Magnet Nd-Fe-B-N38
Material - Cone Polyethylene Naphthalate (PEN)
Shape Round
Supply Chain
Factory Lead Time 10 Weeks
