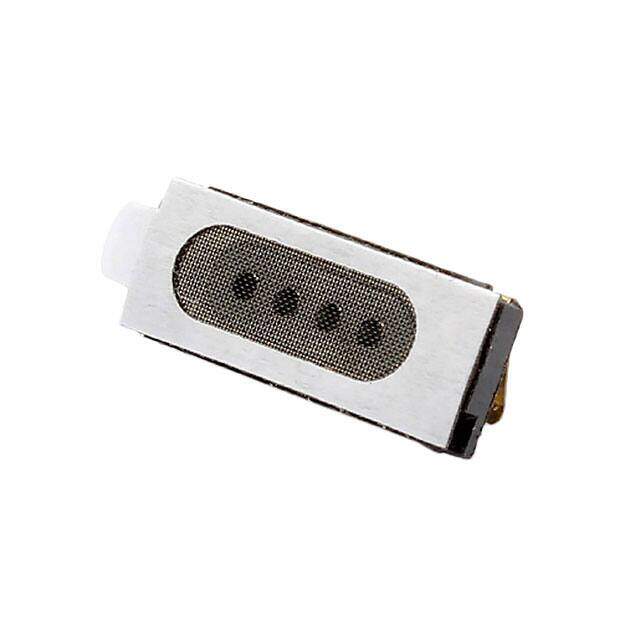

RC-1506S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKR 32OHM 20MW TOP PORT 108DB
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.496
≥1 USD $1.496
≥10 USD $1.24432
≥100 USD $1.149984
≥500 USD $1.08152
≥1000 USD $1.015344
≥3000 USD $0.94072
Inventory: 145
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Length 15mm
Height Seated (Max) 0.118 3.00mm
Height 3mm
Technical
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 108.00
Port Location Top
Power - Rated 20mW
Frequency Range 300Hz~3.4kHz
Power - Max 50mW
Frequency - Self Resonant 650Hz
Impedance 32Ohms
Technology Magnetic
Max Power Dissipation 50mW
Power Rating 20mW
Type Receiver
Termination Spring Type
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.591Lx0.236W 15.00mmx6.00mm
Series RC
Published 2016
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyethylenimine (PEI)
Shape Rectangular
Supply Chain
Factory Lead Time 10 Weeks
