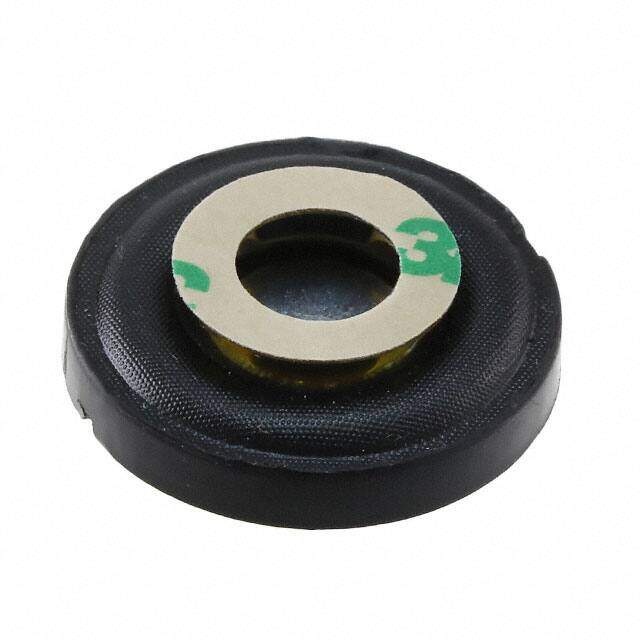

ASX02108-R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
EXCITER 8OHM 250MW 75DB ROUND
PDF
/
Buying Options
Total Price: USD $4.07
Unit Price: USD $4.0744
≥1 USD $4.0744
≥10 USD $3.36336
≥100 USD $3.100768
≥500 USD $2.91038
≥1000 USD $2.72712
≥3000 USD $2.41487
Inventory: 631
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.335 8.50mm
Height 9mm
Technical
Efficiency - Testing 1W/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 71.00
Port Location Top
Power - Rated 250mW
Frequency Range 640Hz~10.5kHz
Power - Max 500mW
Frequency - Self Resonant 640Hz
Impedance 8Ohms
Technology Magnetic
Max Power Dissipation 500mW
Power Rating 250mW
Type Exciter
Termination Solder Pads
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.823Dia 20.90mm
Series ASX
Published 2016
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Shape Round
Supply Chain
Factory Lead Time 15 Weeks
