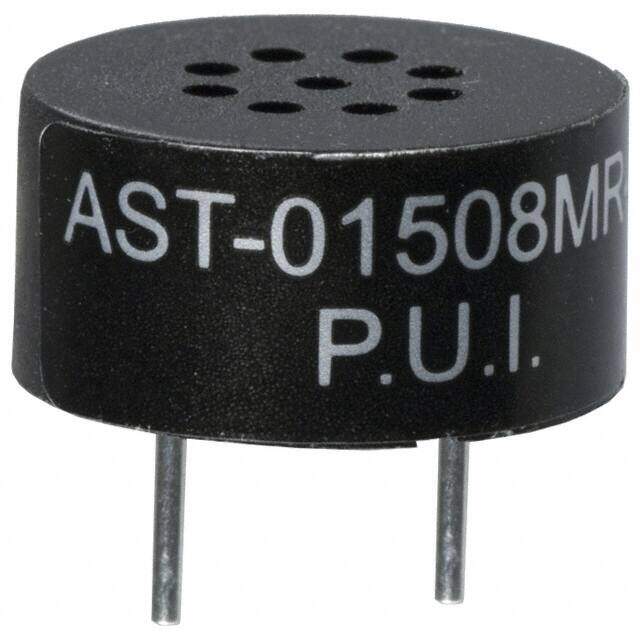

AST-01508MR-R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 300MW TOP PORT 87DB
PDF
/
Buying Options
Total Price: USD $3.34
Unit Price: USD $3.344
≥1 USD $3.344
≥10 USD $2.76584
≥100 USD $2.552
≥500 USD $2.3969
≥1000 USD $2.247634
≥3000 USD $2.088134
Inventory: 1127
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 15mm
Length 15mm
Height Seated (Max) 0.295 7.50mm
Height 7.5mm
Diameter 15mm
Technical
Efficiency - Testing 300mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 87.00
Port Location Top
Power - Rated 300mW
Frequency Range 1.7kHz~20kHz
Power - Max 500mW
Frequency - Self Resonant 1700Hz
Impedance 8Ohms
Frequency 1.7kHz
Technology Magnetic
Max Power Dissipation 500mW
Power Rating 300mW
Resistance 8Ohm
Type General Purpose
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.591Dia 15.00mm
Series AST
Published 2010
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Round
Housing Material Polybutylene
Mount Through Hole
Supply Chain
Factory Lead Time 15 Weeks
