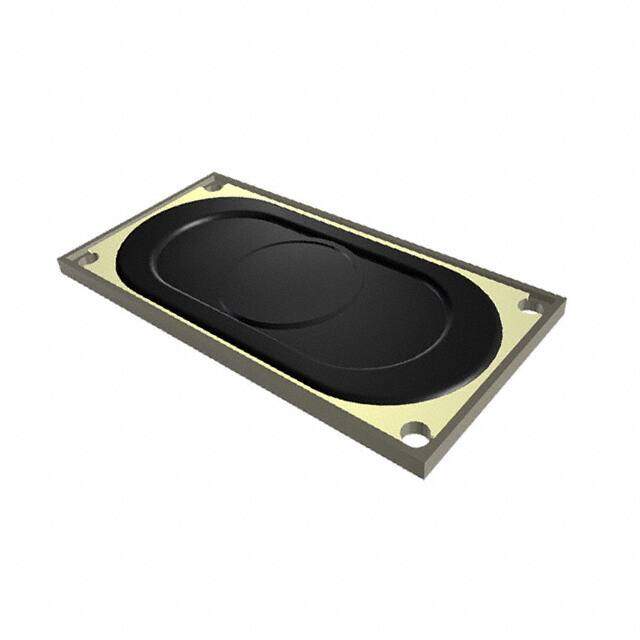

AS04008CO-WR-R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 2W TOP PORT 83DB
PDF
/
Buying Options
Total Price: USD $3.22
Unit Price: USD $3.2208
≥1 USD $3.2208
≥10 USD $2.65496
≥100 USD $2.581568
Inventory: 1256
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 20mm
Length 40mm
Height Seated (Max) 0.240 6.10mm
Height 6.1mm
Technical
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 83.00
Port Location Top
Power - Rated 2W
Frequency Range 200Hz~20kHz
Power - Max 3W
Frequency - Self Resonant 400Hz
Impedance 8Ohms
Frequency 200Hz
Depth 5.8mm
Ingress Protection Water Resistant
Technology Magnetic
Max Power Dissipation 3W
Power Rating 2W
Min Operating Temperature -20°C
Max Operating Temperature 60°C
Type General Purpose
Termination Solder Pads
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 1.575Lx0.787W 40.00mmx20.00mm
Series AS
Published 2011
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Cloth
Shape Oval, Rectangular Frame
Housing Material Metal
Mount Panel
Supply Chain
Factory Lead Time 15 Weeks
