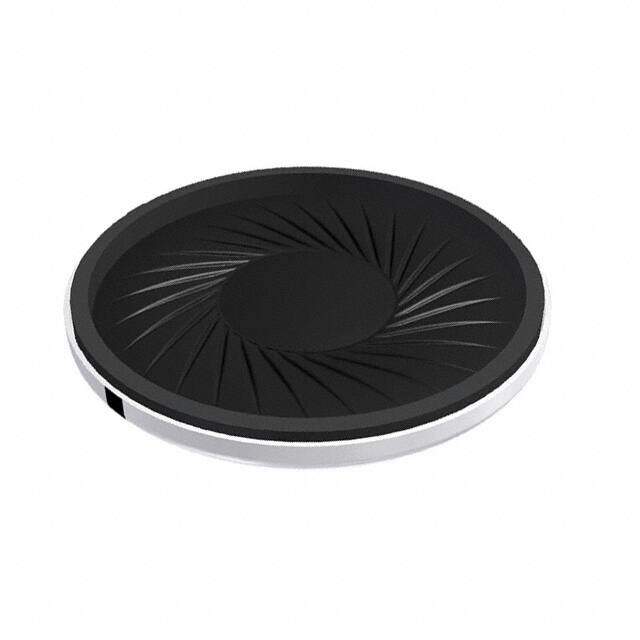

AS02808MR-R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 1W TOP PORT 80DB
PDF
/
Buying Options
Total Price: USD $2.5
Unit Price: USD $2.499996
≥1 USD $2.499996
≥10 USD $2.35849
≥100 USD $2.224993
≥500 USD $2.099047
≥1000 USD $1.980233
Inventory: 1157
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Base
Housing Material Metal
Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet N35
Technical
Packaging Tray
Published 2010
Series AS
Size / Dimension 1.102Dia 28.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Pads
Type General Purpose
Max Operating Temperature 55°C
Min Operating Temperature -20°C
Power Rating 1W
Max Power Dissipation 2W
Technology Magnetic
Depth 5.2mm
Frequency 20kHz
Impedance 8Ohms
Frequency - Self Resonant 500Hz
Power - Max 1.5W
Frequency Range 500Hz~20kHz
Power - Rated 1W
Port Location Top
Efficiency - dBA 80.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 1W/1M
Dimensions
Diameter 28mm
Height 5.5mm
Height Seated (Max) 0.205 5.20mm
Compliance
RoHS Status ROHS3 Compliant
