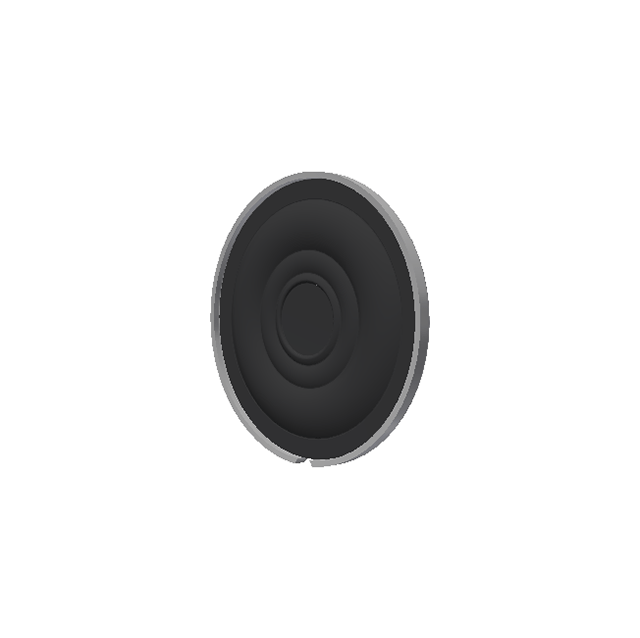

AS02016MR-2-R
RoHS
RoHS compliant
RoHS compliantPackage 600
Category Audio Products / Speakers
Description
SPEAKER .3W 16 OHM 91DBA 600HZ
PDF
/
Buying Options
Total Price: USD $2.16
Unit Price: USD $2.1648
≥1 USD $2.1648
≥10 USD $1.79784
≥100 USD $1.660736
≥500 USD $1.5609
≥1000 USD $1.464874
≥3000 USD $1.25613
Inventory: 964
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Diameter 20mm
Technical
Distortion Rating Out of Bounds
Efficiency - Testing 300mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 91.00
Port Location Top
Power - Rated 300mW
Frequency Range 600Hz~7kHz
Power - Max 500mW
Impedance 16Ohm
Frequency 600Hz
Depth 3mm
Technology Magnetic
Power Rating 500mW
Type General Purpose
Termination Solder Pads
Part Status Active
Size / Dimension 0.787Dia 20.00mm
Series AS
Published 2012
Packaging Tray
Operating Temperature -20°C~55°C
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Round
Package / Case 600
Supply Chain
Factory Lead Time 15 Weeks
