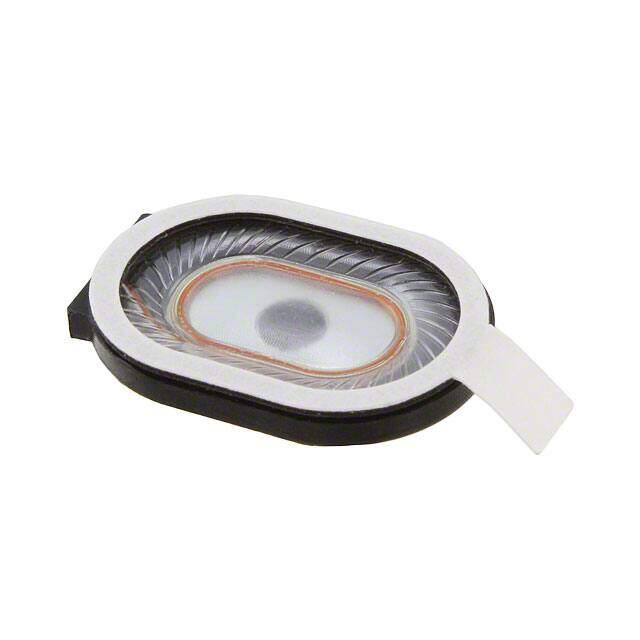

AS02008MO-R

PUI Audio, Inc.
RoHS
RoHS RoHS compliant
Package /
Category Audio Products / Speakers
Description SPEAKER 8OHM 500MW TOP PORT 94DB
PDF
/
Buying Options
Total Price: USD $4
Unit Price: USD $3.997421
≥1 USD $3.997421
≥10 USD $3.771151
≥100 USD $3.557693
≥500 USD $3.356315
≥1000 USD $3.166328
Inventory: 1153
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 15 Weeks

Physical

Mount Surface Mount
Shape Oval
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Rare Earth

Technical

Packaging Tray
Published 2011
Series AS
Size / Dimension 0.787Lx0.551W 20.00mmx14.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Pads
Type General Purpose
Power Rating 500mW
Max Power Dissipation 1W
Technology Magnetic
Impedance 8Ohms
Frequency - Self Resonant 750Hz
Power - Max 1W
Frequency Range 400Hz~20kHz
Power - Rated 500mW
Port Location Top
Efficiency - dBA 94.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 500mW/100mm

Dimensions

Height 3mm
Height Seated (Max) 0.128 3.25mm
Length 20mm
Width 15mm

Compliance

RoHS Status ROHS3 Compliant
