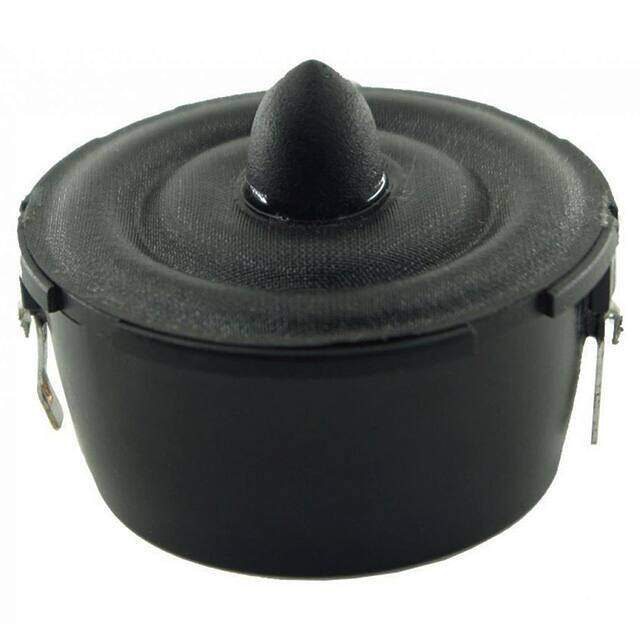

XT25SC40-04
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
TWEETR 4OHM 100W TOP PORT 87.9DB
PDF
/
Buying Options
Total Price: USD $42.47
Unit Price: USD $42.468376
≥1 USD $42.468376
≥150 USD $16.9456
≥450 USD $16.37974
≥1050 USD $16.100093
Inventory: 8899
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 1.291 32.80mm
Technical
Efficiency - Testing 1W/1M
Efficiency - Type Half Space Sensitivity
Efficiency - dBA 87.90
Port Location Top
Power - Rated 100W
Frequency Range 2.5kHz~20kHz
Frequency - Self Resonant 1018.45Hz
Impedance 3.79Ohms
Technology Magnetic
Type Tweeter
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.732Dia 44.00mm
Series XT
Published 2017
Packaging Bulk
Physical
Material - Magnet Nd
Material - Cone Cloth
Shape Round
Supply Chain
Factory Lead Time 18 Weeks
