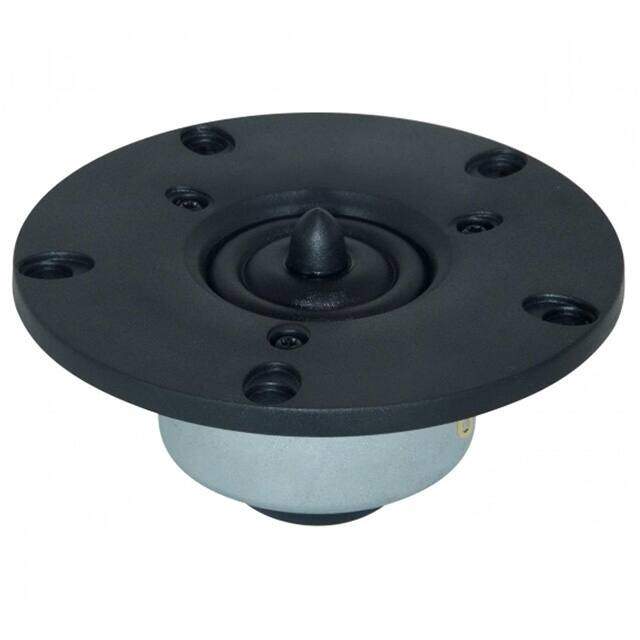

XT25SC30-04 image
Favorite
XT25SC30-04 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Audio Products / Speakers
Description TWEETR 4OHM 100W TOP PORT 86.8DB
PDF
/
Inventory: 2207
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Shape Round
Material - Cone Cloth
Material - Magnet Nd

Technical

Packaging Bulk
Published 2016
Series XT
Size / Dimension 4.094Dia 104.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Eyelet(s)
Type Tweeter
Technology Magnetic
Impedance 3.58Ohms
Frequency - Self Resonant 648.81Hz
Frequency Range 1kHz~20kHz
Power - Rated 100W
Port Location Top
Efficiency - dBA 86.80
Efficiency - Type Half Space Sensitivity
Efficiency - Testing 1W/1M

Dimensions

Height Seated (Max) 2.262 57.46mm

Compliance

RoHS Status RoHS Compliant
