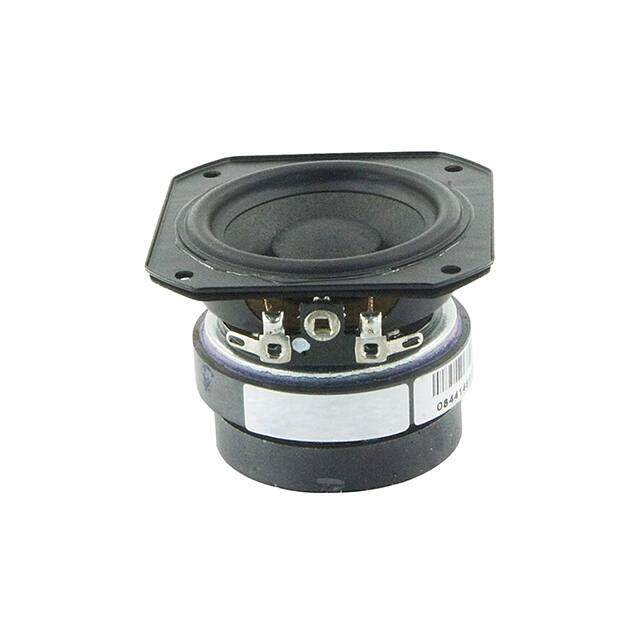

TC6FD02-04
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 4OHM 15W TOP PORT 84DB
PDF
/
Buying Options
Total Price: USD $8.68
Unit Price: USD $8.6768
≥1 USD $8.6768
≥10 USD $8.24384
≥100 USD $7.809824
≥500 USD $7.375896
≥1000 USD $6.942003
Inventory: 1150
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Shape Round, Square Frame
Material - Cone Paper
Material - Magnet Ferrite
Technical
Packaging Bulk
Published 2016
Series TC
Size / Dimension 2.323Lx2.323W 59.00mmx59.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Eyelet(s)
Type Full Range
Technology Magnetic
Impedance 4.17Ohms
Frequency - Self Resonant 171.16Hz
Frequency Range 100Hz~10kHz
Power - Rated 15W
Port Location Top
Efficiency - dBA 84.00
Efficiency - Type Half Space Sensitivity
Efficiency - Testing 1W/1M
Dimensions
Height Seated (Max) 1.776 45.10mm
Compliance
RoHS Status RoHS Compliant
