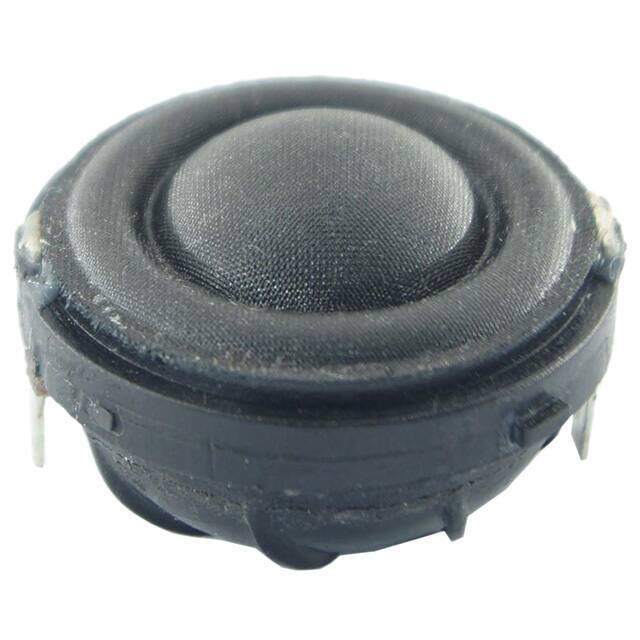

OX20SC02-08
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
TWEETER 8OHM 80W TOP PORT 87.9DB
PDF
/
Buying Options
Total Price: USD $16.35
Unit Price: USD $16.345605
≥1 USD $16.345605
≥240 USD $6.522487
≥480 USD $6.304546
≥960 USD $6.196888
Inventory: 8171
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.909 23.10mm
Technical
Efficiency - Testing 1W/1M
Efficiency - Type Half Space Sensitivity
Efficiency - dBA 87.90
Port Location Top
Power - Rated 80W
Frequency Range 2.5kHz~20kHz
Frequency - Self Resonant 1139.12Hz
Impedance 7.7Ohms
Technology Magnetic
Type Tweeter
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.354Dia 34.40mm
Series OX
Published 2016
Packaging Bulk
Physical
Material - Magnet Nd
Material - Cone Cloth
Shape Round
Supply Chain
Factory Lead Time 18 Weeks
