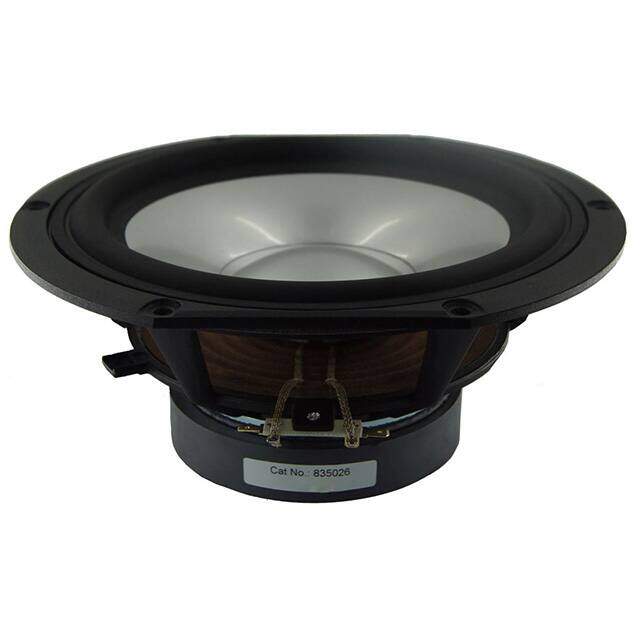

HDS-P835026
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 75W TOP PORT 86.4DB
PDF
/
Inventory: 9426
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 4.189 106.40mm
Technical
Efficiency - Testing 1W/1M
Efficiency - Type Half Space Sensitivity
Efficiency - dBA 86.40
Port Location Top
Power - Rated 75W
Frequency Range 20Hz~3kHz
Frequency - Self Resonant 31.12Hz
Impedance 6.98Ohms
Technology Magnetic
Type Woofer
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 8.858Dia 225.00mm
Series HDS
Published 2017
Packaging Bulk
Physical
Material - Magnet Ferrite
Material - Cone Aluminum (AI)
Shape Round
Supply Chain
Factory Lead Time 18 Weeks
