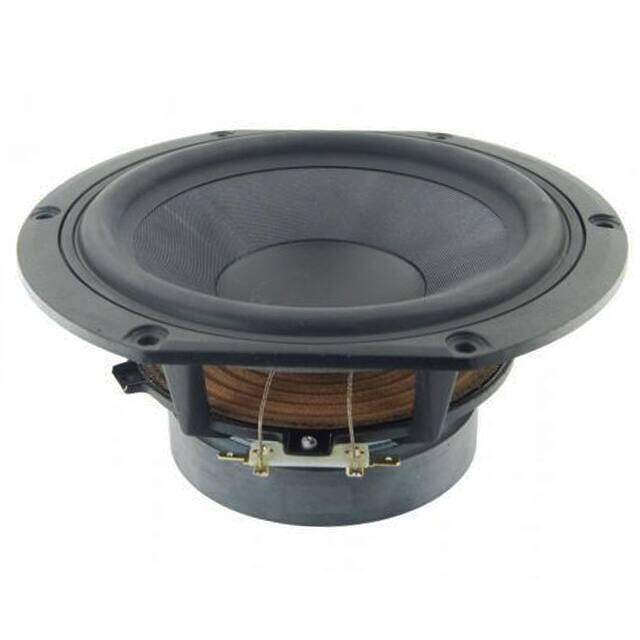

HDS-P830990
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 50W TOP PORT 87.8DB
PDF
/
Buying Options
Total Price: USD $113.14
Unit Price: USD $113.141783
≥1 USD $113.141783
≥204 USD $45.144067
≥504 USD $43.635544
≥996 USD $42.89113
Inventory: 3899
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Shape Round
Material - Cone Glass Fiber Composite
Material - Magnet Ferrite
Technical
Packaging Bulk
Published 2017
Series HDS
Size / Dimension 6.693Dia 170.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Eyelet(s)
Type Woofer
Technology Magnetic
Impedance 7.02Ohms
Frequency - Self Resonant 46.24Hz
Frequency Range 20Hz~3kHz
Power - Rated 50W
Port Location Top
Efficiency - dBA 87.80
Efficiency - Type Half Space Sensitivity
Efficiency - Testing 1W/1M
Dimensions
Height Seated (Max) 3.433 87.20mm
Compliance
RoHS Status RoHS Compliant
