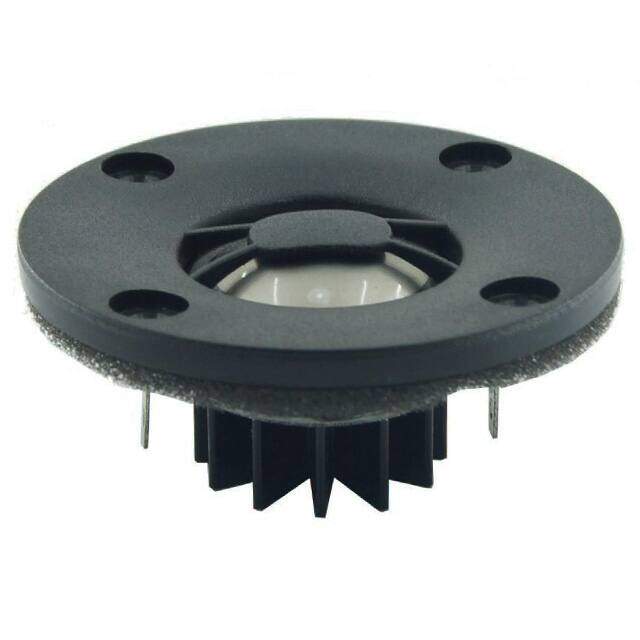

DQ25SC16-04
RoHS
/
Package /
Category Audio Products / Speakers
Description
TWEETR 4OHM 100W TOP PORT 90.7DB
PDF
/
Inventory: 2707
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Shape Round
Material - Cone Titanium, Treated
Material - Magnet Nd-Fe-B
Technical
Packaging Bulk
Published 2016
Series DQ
Size / Dimension 2.559Dia 65.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Eyelet(s)
Type Tweeter
Technology Magnetic
Impedance 3.73Ohms
Frequency - Self Resonant 1369.53Hz
Frequency Range 2.5kHz~20kHz
Power - Rated 100W
Port Location Top
Efficiency - dBA 90.70
Efficiency - Type Half Space Sensitivity
Efficiency - Testing 1W/1M
Dimensions
Height Seated (Max) 1.106 28.10mm
