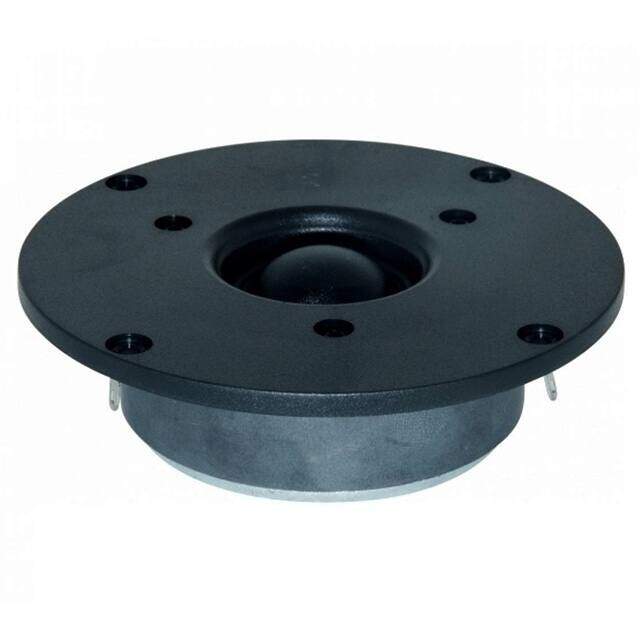

D27TG05-06
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
TWEETR 6OHM 100W TOP PORT 90.9DB
PDF
/
Buying Options
Total Price: USD $49.67
Unit Price: USD $49.669633
≥1 USD $49.669633
≥210 USD $19.818226
≥510 USD $19.156524
≥990 USD $18.829612
Inventory: 6460
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 1.228 31.20mm
Technical
Efficiency - Testing 1W/1M
Efficiency - Type Half Space Sensitivity
Efficiency - dBA 90.90
Port Location Top
Power - Rated 100W
Frequency Range 2.5kHz~30kHz
Frequency - Self Resonant 1120Hz
Impedance 5.83Ohms
Technology Magnetic
Type Tweeter
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 4.094Dia 104.00mm
Series D
Published 2016
Packaging Bulk
Physical
Material - Magnet Ferrite
Material - Cone Cloth
Shape Round
Supply Chain
Factory Lead Time 18 Weeks
