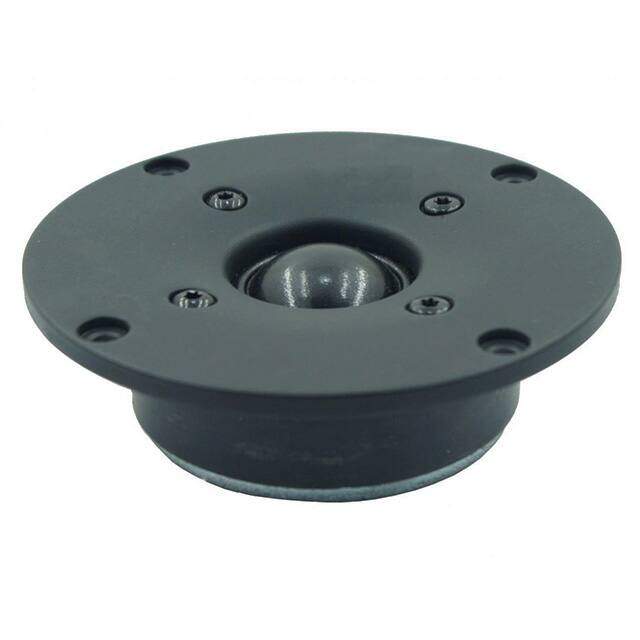

BC25TG15-08
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
TWEETER 8OHM 50W TOP PORT 89.8DB
PDF
/
Buying Options
Total Price: USD $33.59
Unit Price: USD $33.594485
≥1 USD $33.594485
≥210 USD $13.404709
≥510 USD $12.95701
≥990 USD $12.73513
Inventory: 3531
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Shape Round
Material - Cone Cloth
Material - Magnet Ferrite
Technical
Packaging Bulk
Series BC
Size / Dimension 4.106Dia 104.30mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Eyelet(s)
Type Tweeter
Technology Magnetic
Impedance 7.27Ohms
Frequency - Self Resonant 1136.9Hz
Frequency Range 1kHz~20kHz
Power - Rated 100W
Port Location Top
Efficiency - dBA 91.30
Efficiency - Type Half Space Sensitivity
Efficiency - Testing 1W/1M
Dimensions
Height Seated (Max) 1.276 32.40mm
Compliance
RoHS Status RoHS Compliant
