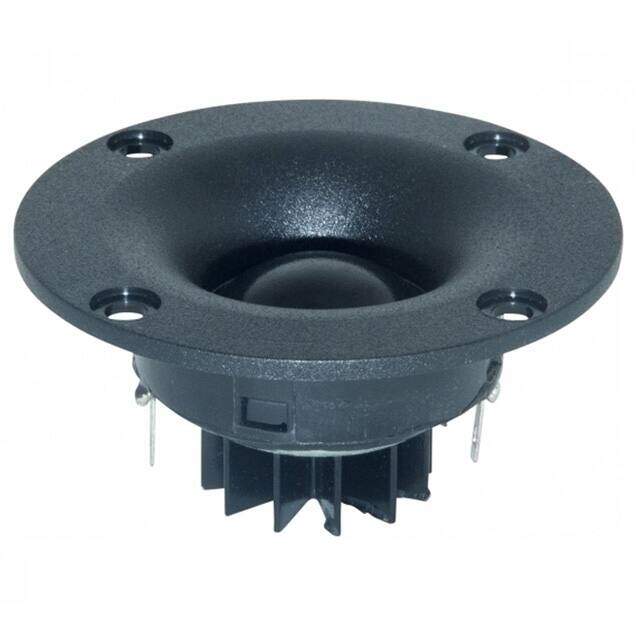

BC25SC08-08
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
TWEETR 8OHM 100W TOP PORT 94.1DB
PDF
/
Buying Options
Total Price: USD $45.52
Unit Price: USD $45.518243
≥1 USD $45.518243
≥240 USD $18.162659
≥480 USD $17.556099
≥960 USD $17.255445
Inventory: 9484
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Shape Round
Material - Cone Cloth
Material - Magnet Nd-Fe-B
Technical
Packaging Bulk
Published 2016
Series BC
Size / Dimension 2.756Dia 70.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Eyelet(s)
Type Tweeter
Technology Magnetic
Impedance 8.2Ohms
Frequency - Self Resonant 1731.62Hz
Frequency Range 2.5kHz~20kHz
Power - Rated 100W
Port Location Top
Efficiency - dBA 94.10
Efficiency - Type Half Space Sensitivity
Efficiency - Testing 1W/1M
Dimensions
Height Seated (Max) 1.350 34.30mm
Compliance
RoHS Status RoHS Compliant
