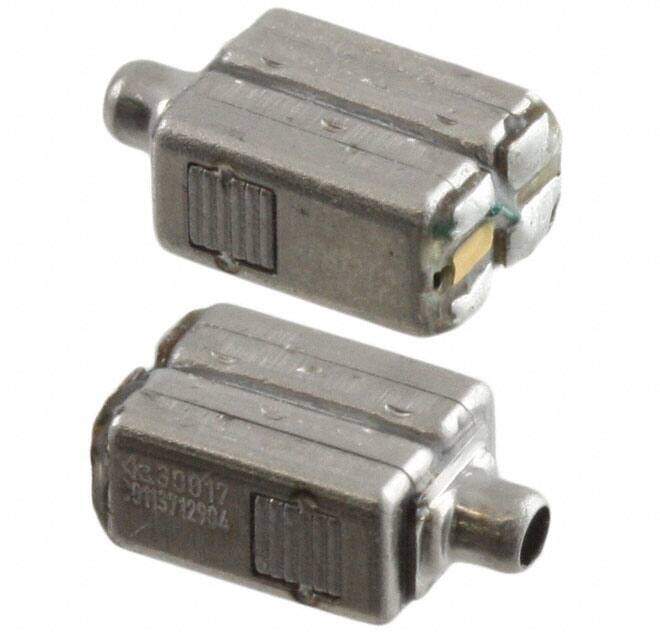

TWFK-30017-000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKR 43OHM SIDE PORT 95DB RECT
PDF
/
Buying Options
Total Price: USD $46.22
Unit Price: USD $46.2176
≥1 USD $46.2176
≥10 USD $38.80184
≥100 USD $36.518944
≥500 USD $35.37776
Inventory: 135
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount External
Shape Rectangular
Technical
Packaging Tray
Published 2012
Series TWFK
Size / Dimension 0.197Lx0.108W 5.00mmx2.73mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type Receiver, Balanced Armature
Technology Magnetic
Depth 4.36mm
Frequency 6.5kHz
Impedance 43Ohm
Frequency Range 200Hz~6.5kHz
Port Location Top
Efficiency - dBA 95.00
Efficiency - Type Sound Pressure Level (SPL)
Dimensions
Height 4.36mm
Height Seated (Max) 0.250 6.35mm
Compliance
RoHS Status RoHS Compliant
