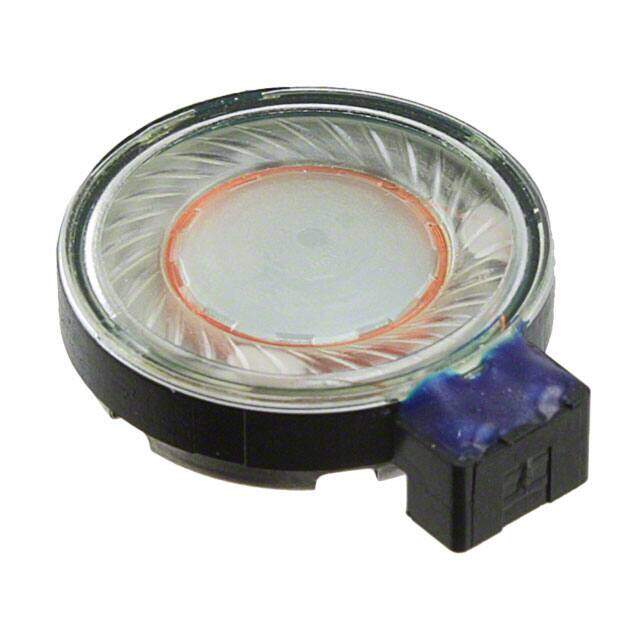

2403 263 00077
RoHS
/
Package /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 500MW TOP PORT 74DB
PDF
/
Buying Options
Total Price: USD $1.41
Unit Price: USD $1.406116
≥1 USD $1.406116
≥200 USD $0.561921
≥500 USD $0.542228
≥1000 USD $0.533037
Inventory: 936
Minimum: 1
-
+
Technical Details
Dimensions
Height Seated (Max) 0.177 4.50mm
Technical
Efficiency - Testing 1W/1M
Efficiency - Type Sensitivity
Efficiency - dBA 74.00
Port Location Top
Power - Rated 500mW
Frequency Range 300Hz~15kHz
Power - Max 1W
Frequency - Self Resonant 540Hz
Impedance 8Ohms
Technology Magnetic
Type General Purpose
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.646Dia 16.40mm
Published 2011
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Plastic
Shape Round
