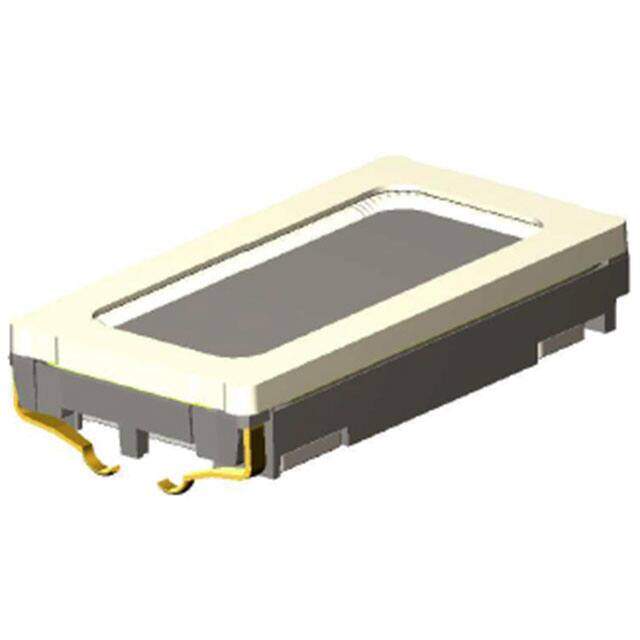

2403 260 00165
RoHS
/
Package /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 700MW TOP PORT 94DB
PDF
/
Buying Options
Total Price: USD $2.34
Unit Price: USD $2.343527
≥1 USD $2.343527
≥200 USD $0.936098
≥500 USD $0.904588
≥1000 USD $0.888833
Inventory: 7669
Minimum: 1
-
+
Technical Details
Dimensions
Height Seated (Max) 0.118 3.00mm
Technical
Efficiency - Testing 1W/1M
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 94.00
Port Location Top
Power - Rated 700mW
Frequency Range 300Hz~20kHz
Power - Max 700mW
Frequency - Self Resonant 510Hz
Impedance 8Ohms
Technology Magnetic
Type General Purpose
Termination Spring Type
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.630Lx0.354W 16.00mmx9.00mm
Series Wildcat S9
Published 2014
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyetheretherketone (PEEK)
Shape Rectangular
