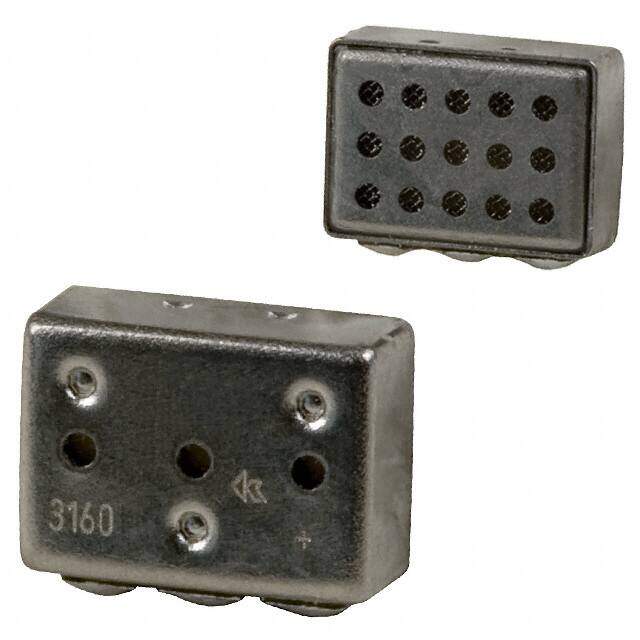

2403 260 00098
RoHS
/
Package /
Category Audio Products / Speakers
Description
SPEAKER 6OHM 1W TOP PORT 73.5DB
PDF
/
Buying Options
Total Price: USD $4.06
Unit Price: USD $4.062113
≥1 USD $4.062113
≥200 USD $1.621432
≥500 USD $1.567603
≥1000 USD $1.540032
Inventory: 8599
Minimum: 1
-
+
Technical Details
Physical
Shape Rectangular
Material - Cone Silicone
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Published 2013
Series Cobra Side Fire
Size / Dimension 0.591Lx0.433W 15.00mmx11.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Spring Type
Type General Purpose
Technology Magnetic
Impedance 6Ohm
Frequency - Self Resonant 780Hz
Power - Max 1.2W
Frequency Range 300Hz~10kHz
Power - Rated 1W
Port Location Top
Efficiency - dBA 73.50
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 1W/10mm
Dimensions
Height Seated (Max) 0.157 4.00mm
