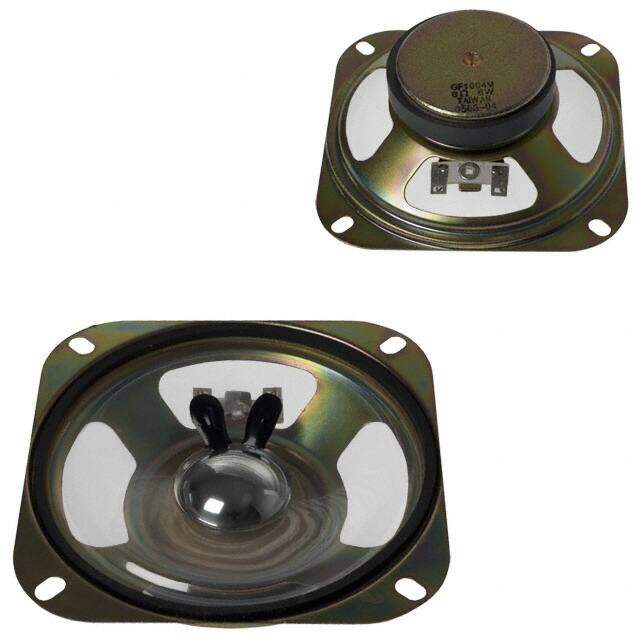

GF1004M
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 6W TOP PORT 93DB
PDF
/
Buying Options
Total Price: USD $6.51
Unit Price: USD $6.512
≥1 USD $6.512
≥10 USD $5.34424
≥100 USD $4.916736
≥500 USD $4.607777
≥1000 USD $4.311393
≥3000 USD $4.188281
Inventory: 1138
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 102.4mm
Length 102.4mm
Height Seated (Max) 1.437 36.50mm
Height 36.5mm
Technical
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 93.00
Port Location Top
Power - Rated 6W
Frequency Range 230Hz~14kHz
Power - Max 10W
Frequency - Self Resonant 230Hz
Impedance 8Ohms
Technology Magnetic
Max Power Dissipation 10W
Power Rating 6W
Resistance 8Ohm
Type General Purpose
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 4.032Lx4.032W 102.40mmx102.40mm
Series GF
Published 2011
Packaging Bulk
Physical
Material - Magnet Ferrite
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Round, Square Frame
Weight 85g
Housing Material Metal
Supply Chain
Factory Lead Time 16 Weeks
