GF0922
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description

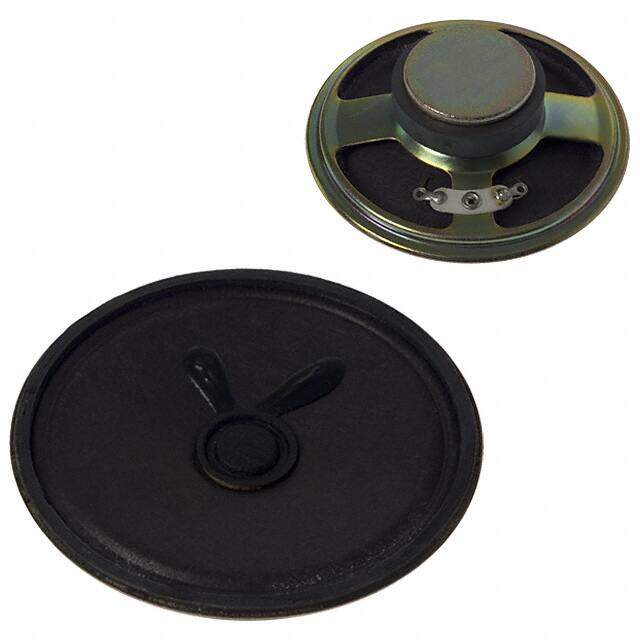

SPEAKER 8OHM 2W TOP PORT 93DB
PDF
/
Buying Options
Total Price: USD $10.54
Unit Price: USD $10.538648
≥1 USD $10.538648
≥200 USD $4.205219
≥500 USD $4.064738
≥1000 USD $3.995155
Inventory: 3262
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Housing Material Metal
Weight 28.4g
Shape Round
Material - Cone Paper
Material - Magnet Ferrite
Technical
Packaging Bulk
Published 2011
Series GF
Size / Dimension 3.622Dia 92.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Eyelet(s)
Type General Purpose
Resistance 8Ohm
Power Rating 2W
Max Power Dissipation 3W
Technology Magnetic
Impedance 8Ohms
Frequency - Self Resonant 300Hz
Power - Max 3W
Frequency Range 300Hz~13kHz
Power - Rated 2W
Port Location Top
Efficiency - dBA 93.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 1W/500mm
Dimensions
Height 28.3mm
Height Seated (Max) 1.102 28.00mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
