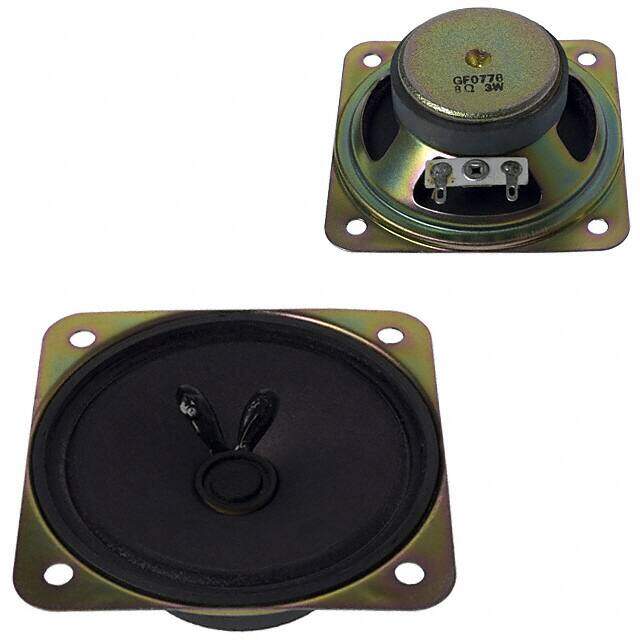

GF0778B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 3W TOP PORT 95DB
PDF
/
Buying Options
Total Price: USD $4.51
Unit Price: USD $4.5144
≥1 USD $4.5144
≥10 USD $3.7268
≥100 USD $3.435872
≥500 USD $3.225024
≥1000 USD $3.022096
≥3000 USD $2.84071
Inventory: 8503
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 1.201 30.50mm
Height 27.5mm
Technical
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 95.00
Port Location Top
Power - Rated 3W
Frequency Range 200Hz~15kHz
Frequency - Self Resonant 250Hz
Impedance 8Ohm
Technology Magnetic
Max Power Dissipation 5W
Power Rating 3W
Resistance 8Ohm
Type General Purpose
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 3.032Lx3.032W 77.00mmx77.00mm
Series GF
Published 2006
Packaging Bulk
Physical
Material - Magnet Ferrite
Material - Cone Paper
Shape Round, Square Frame
Weight 48.2g
Housing Material Metal
Supply Chain
Factory Lead Time 16 Weeks
