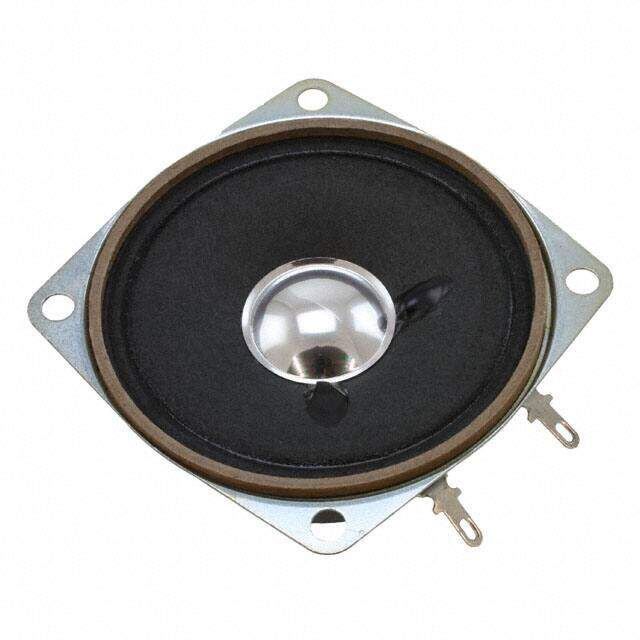

GF0668
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 3W TOP PORT 90DB
PDF
/
Buying Options
Total Price: USD $4.04
Unit Price: USD $4.0392
≥1 USD $4.0392
≥10 USD $3.3308
≥100 USD $3.070848
≥500 USD $2.882528
≥1000 USD $2.701072
≥3000 USD $2.53895
Inventory: 1091
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Housing Material Metal
Weight 48.2g
Shape Round, Square Frame
Material - Cone Paper
Material - Magnet Ferrite
Technical
Packaging Bulk
Published 2011
Series GF
Size / Dimension 2.598Lx2.598W 66.00mmx66.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Eyelet(s)
Type General Purpose
Resistance 8Ohm
Power Rating 3W
Max Power Dissipation 5W
Technology Magnetic
Impedance 8Ohms
Frequency - Self Resonant 300Hz
Power - Max 5W
Frequency Range 240Hz~20kHz
Power - Rated 3W
Port Location Top
Efficiency - dBA 90.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 1W/500mm
Dimensions
Height 29.3mm
Height Seated (Max) 1.142 29.00mm
Length 66mm
Width 66mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
