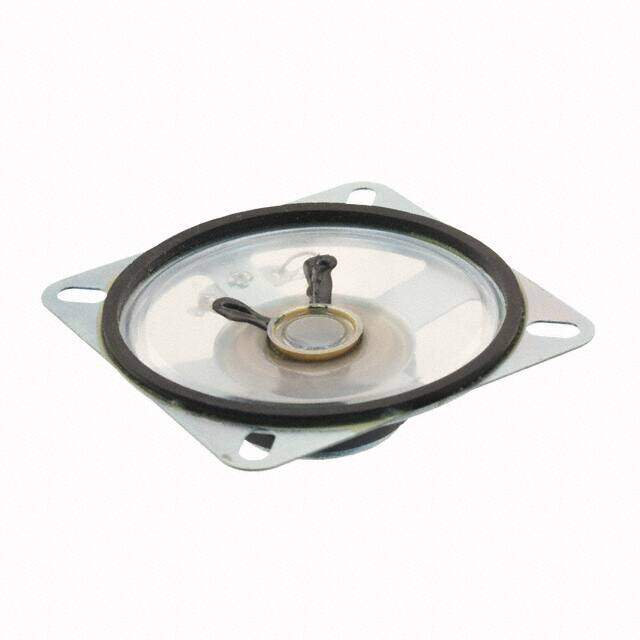

GF0666M
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 500MW TOP PORT 83DB
PDF
/
Buying Options
Total Price: USD $4.54
Unit Price: USD $4.5408
≥1 USD $4.5408
≥10 USD $3.74968
≥100 USD $3.45664
≥500 USD $3.24456
≥1000 USD $3.040312
≥3000 USD $2.857844
Inventory: 10155
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Housing Material Metal
Weight 16.4g
Shape Round, Square Frame
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Ferrite
Technical
Packaging Bulk
Published 2011
Series GF
Size / Dimension 2.598Lx2.598W 66.00mmx66.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Eyelet(s)
Type General Purpose
Resistance 8Ohm
Power Rating 500mW
Max Power Dissipation 1W
Technology Magnetic
Impedance 8Ohms
Frequency - Self Resonant 420Hz
Power - Max 1W
Frequency Range 420Hz~12kHz
Power - Rated 500mW
Port Location Top
Efficiency - dBA 88.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 500mW/500mm
Dimensions
Height 20mm
Height Seated (Max) 0.768 19.50mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
