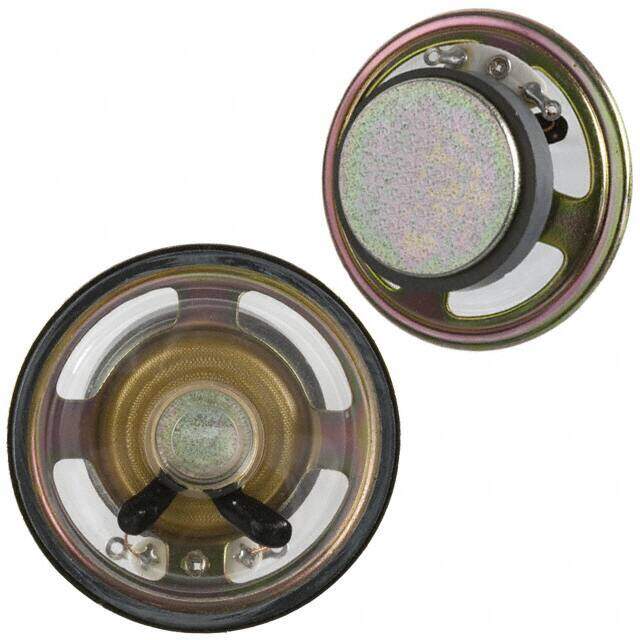

GF0501M
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 250MW TOP PORT 86DB
PDF
/
Buying Options
Total Price: USD $2.91
Unit Price: USD $2.9128
≥1 USD $2.9128
≥10 USD $2.40416
≥100 USD $2.337632
Inventory: 1156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Housing Material Metal
Weight 16.4g
Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Ferrite
Technical
Packaging Tray
Published 2011
Series GF
Size / Dimension 1.969Dia 50.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Eyelet(s)
Type General Purpose
Resistance 8Ohm
Power Rating 250mW
Max Power Dissipation 500mW
Technology Magnetic
Impedance 8Ohms
Frequency - Self Resonant 440Hz
Power - Max 500mW
Frequency Range 440Hz~5.8kHz
Power - Rated 250mW
Port Location Top
Efficiency - dBA 86.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 250mW/500mm
Dimensions
Height 18mm
Height Seated (Max) 0.689 17.50mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
