GC0351P-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description

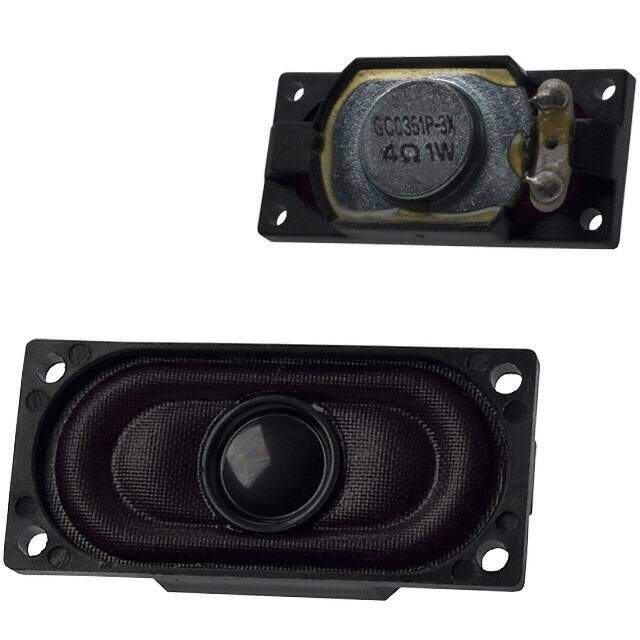

SPEAKER 4OHM 1W TOP PORT 82DB
PDF
/
Buying Options
Total Price: USD $4.13
Unit Price: USD $4.1272
≥1 USD $4.1272
≥10 USD $3.40472
≥100 USD $3.310912
Inventory: 1086
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Housing Material Plastic
Shape Oval, Rectangular Frame
Material - Cone Cloth
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Published 2011
Series GC
Size / Dimension 1.378Lx0.630W 35.00mmx16.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Eyelet(s)
Type General Purpose
Resistance 4Ohm
Power Rating 1W
Max Power Dissipation 2W
Technology Magnetic
Impedance 4Ohms
Frequency - Self Resonant 630Hz
Power - Max 2W
Frequency Range 630Hz~13kHz
Power - Rated 1W
Port Location Top
Efficiency - dBA 82.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 1W/500mm
Dimensions
Height 7.7mm
Height Seated (Max) 0.291 7.40mm
Length 16mm
Width 35mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
