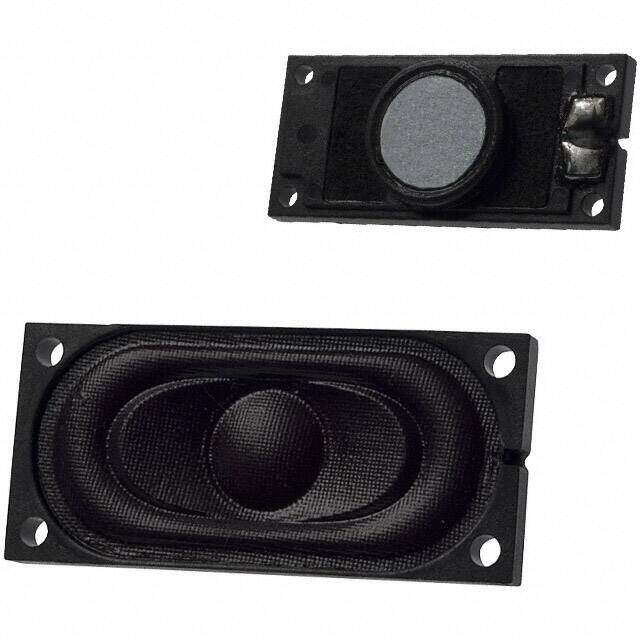

GC0351M
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 1W TOP PORT 81DB
PDF
/
Buying Options
Total Price: USD $3.91
Unit Price: USD $3.9072
≥1 USD $3.9072
≥10 USD $3.2252
≥100 USD $2.973696
≥500 USD $2.79114
≥1000 USD $2.615457
≥3000 USD $2.458491
Inventory: 28106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Housing Material Plastic
Shape Oval, Rectangular Frame
Material - Cone Cloth
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Published 2011
Series GC
Size / Dimension 1.378Lx0.630W 35.00mmx16.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type General Purpose
Resistance 8Ohm
Power Rating 1W
Max Power Dissipation 1.5W
Technology Magnetic
Impedance 8Ohm
Frequency - Self Resonant 650Hz
Frequency Range 520Hz~20kHz
Power - Rated 1W
Port Location Top
Efficiency - dBA 81.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 1W/500mm
Dimensions
Height 5.2mm
Height Seated (Max) 0.197 5.00mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
