GC0281M
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description

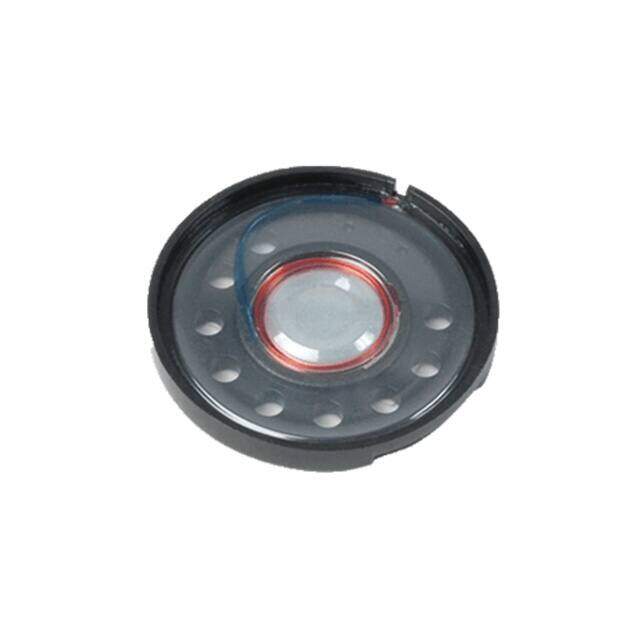

SPEAKER 8OHM .2W 28MM RND
PDF
/
Buying Options
Total Price: USD $1.92
Unit Price: USD $1.9184
≥1 USD $1.9184
≥10 USD $1.584
≥100 USD $1.503744
Inventory: 1112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Technical
Series GC
Size / Dimension 1.102Dia 28.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Eyelet(s)
Type General Purpose
Technology Magnetic
Impedance 8Ohm
Power - Max 200mW
Frequency Range 0Hz~2.8kHz
Power - Rated 100mW
Port Location Top
Efficiency - dBA 112.00
Efficiency - Type Sound Pressure Level (SPL)
Dimensions
Height Seated (Max) 0.157 4.00mm
Compliance
RoHS Status RoHS Compliant
