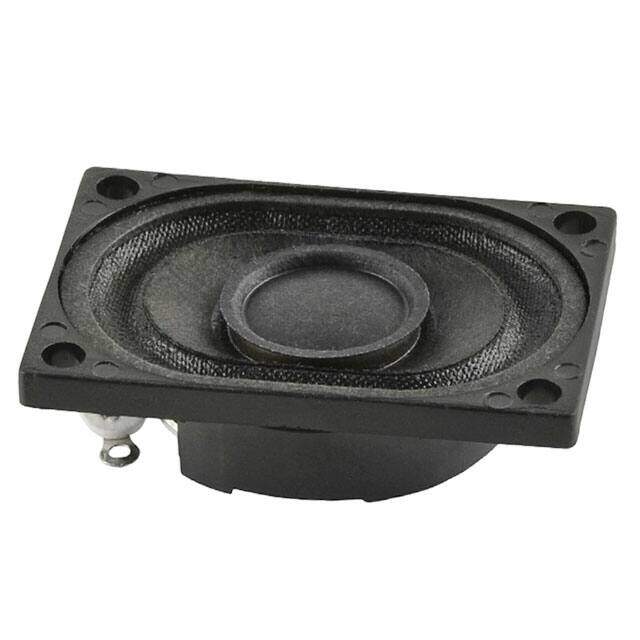

CMS-40288N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 2W ENCLOSED 85DB
PDF
/
Buying Options
Total Price: USD $4.01
Unit Price: USD $4.0128
≥1 USD $4.0128
≥10 USD $3.3132
≥100 USD $3.054656
≥500 USD $2.86689
≥1000 USD $2.68657
≥3000 USD $2.37893
Inventory: 1041
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.465 11.80mm
Technical
Efficiency - Testing 1W/300mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 85.00
Port Location Top
Power - Rated 2W
Frequency Range 440Hz~20kHz
Frequency - Self Resonant 550Hz
Impedance 8Ohm
Technology Magnetic
Max Power Dissipation 3W
Power Rating 2W
Type General Purpose
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.575Lx1.102W 40.00mmx28.00mm
Series CMS
Published 2016
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Cloth
Shape Oval, Rectangular Frame
Supply Chain
Factory Lead Time 14 Weeks
