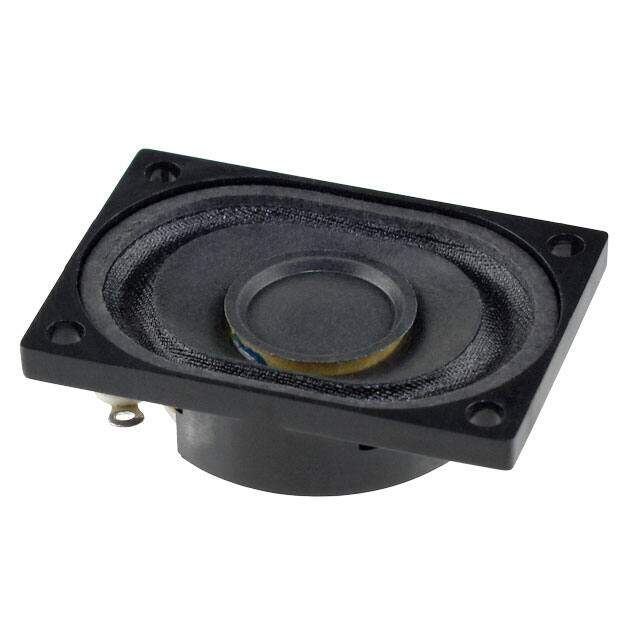

CMS-402811-28SP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 40 X 28MM ENCLOSED
PDF
/
Buying Options
Total Price: USD $2.29
Unit Price: USD $2.288
≥1 USD $2.288
≥10 USD $1.89024
≥100 USD $1.63812
≥500 USD $1.536154
≥1000 USD $1.427175
≥3000 USD $1.325227
Inventory: 1374
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.453 11.50mm
Technical
Distortion Rating 5% Max @ 1kHz, 1W
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 84.00
Port Location Top
Power - Rated 2W
Frequency Range 200Hz~20kHz
Power - Max 3W
Frequency - Self Resonant 450Hz
Impedance 8Ohm
Technology Magnetic
Type General Purpose
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 1.575Lx1.114W 40.00mmx28.30mm
Series CMS
Operating Temperature -20°C~60°C
Physical
Material - Magnet Nd-Fe-B
Material - Cone Cloth
Shape Oval, Rectangular Frame
Supply Chain
Factory Lead Time 5 Weeks
