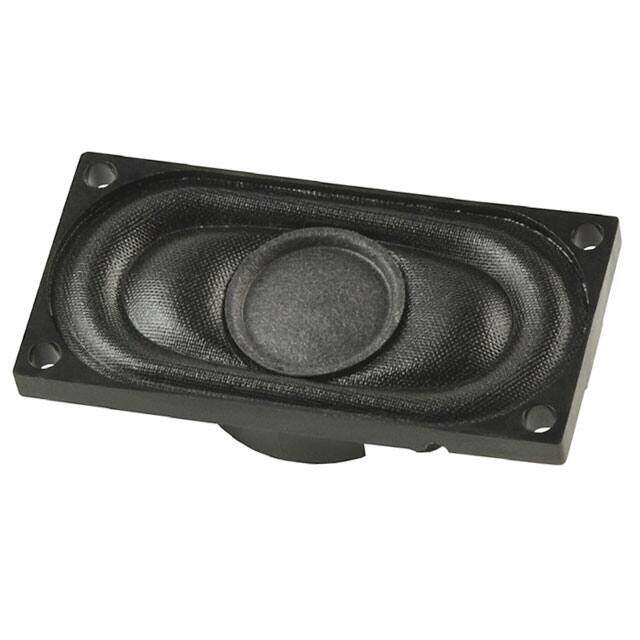

CMS-40208N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 1W ENCLOSED 98DB
PDF
/
Buying Options
Total Price: USD $4.03
Unit Price: USD $4.0304
≥1 USD $4.0304
≥10 USD $3.32816
≥100 USD $3.068384
≥500 USD $2.880064
≥1000 USD $2.698784
≥3000 USD $2.536794
Inventory: 366
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.331 8.40mm
Technical
Efficiency - Testing 1W/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 98.00
Port Location Top
Power - Rated 1W
Frequency Range 520Hz~13kHz
Frequency - Self Resonant 650Hz
Impedance 8Ohm
Technology Magnetic
Max Power Dissipation 1.5W
Power Rating 1W
Type General Purpose
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.575Lx0.787W 40.00mmx20.00mm
Series CMS
Published 2016
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Cloth
Shape Oval, Rectangular Frame
Supply Chain
Factory Lead Time 14 Weeks
