CMS-23558N-L152
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description

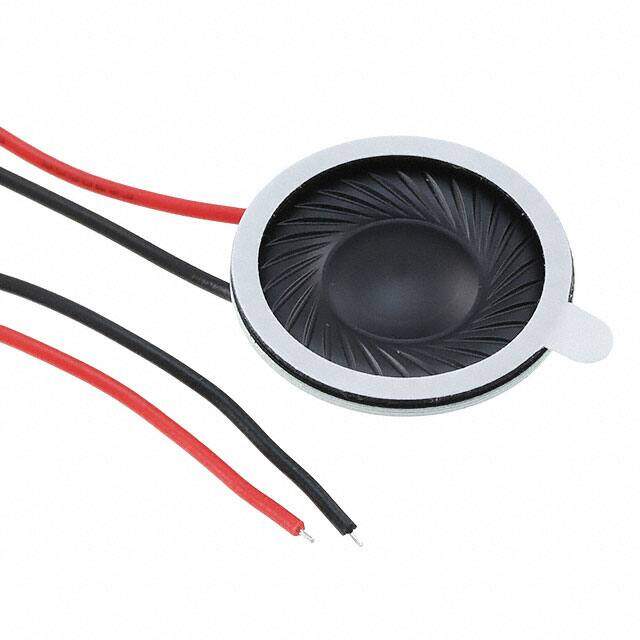

SPEAKER 8OHM 1W ENCLOSED 94DB
PDF
/
Buying Options
Total Price: USD $2.97
Unit Price: USD $2.9656
≥1 USD $2.9656
≥10 USD $2.44904
≥100 USD $2.25984
≥500 USD $2.12212
≥1000 USD $1.990032
≥3000 USD $1.848854
Inventory: 3061
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.217 5.50mm
Technical
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 80.00
Port Location Top
Power - Rated 1W
Frequency Range 440Hz~20kHz
Frequency - Self Resonant 550Hz
Impedance 8Ohm
Technology Magnetic
Max Power Dissipation 1.5W
Power Rating 1W
Type General Purpose
Termination Wire Leads
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.906Dia 23.00mm
Series CMS
Published 2016
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Round
Supply Chain
Factory Lead Time 14 Weeks
