CMS-181325-078L100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description

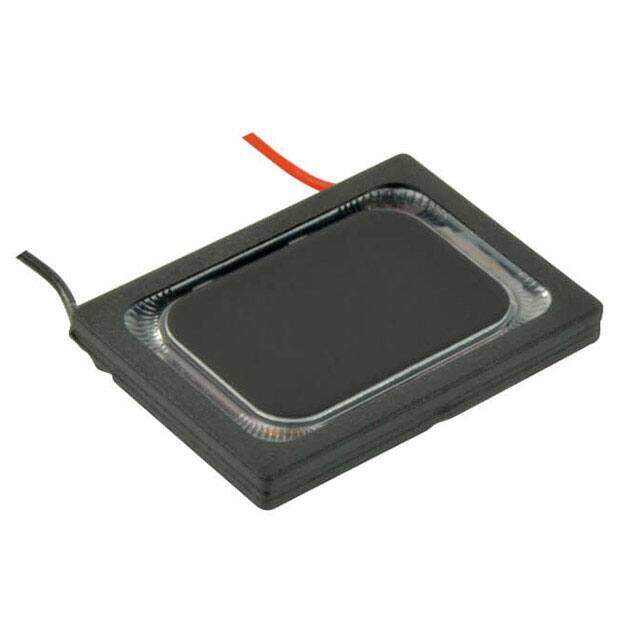

SPEAKER, 18 X 13 MM, 2.5 MM DEEP
PDF
/
Buying Options
Total Price: USD $1.69
Unit Price: USD $1.6896
≥1 USD $1.6896
≥10 USD $1.40184
≥100 USD $1.294656
≥500 USD $1.2166
≥1000 USD $1.1418
≥3000 USD $1.06333
Inventory: 1171
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.098 2.50mm
Technical
Efficiency - Testing 700mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 93.00
Port Location Top
Power - Rated 700mW
Frequency Range 500Hz~10kHz
Power - Max 1W
Frequency - Self Resonant 800Hz
Impedance 8Ohm
Technology Magnetic
Type General Purpose
Termination Wire Leads
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.709Lx0.512W 18.00mmx13.00mm
Series CMS
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Rectangular
Supply Chain
Factory Lead Time 11 Weeks
