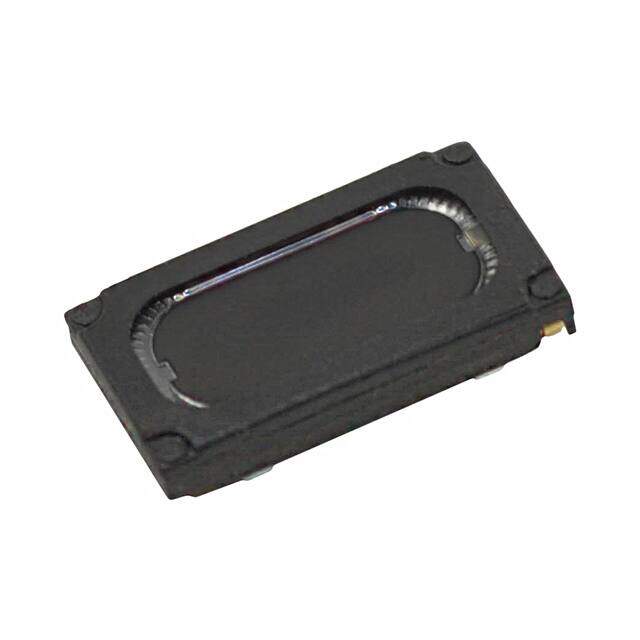

CMS-16098A-SP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 800MW ENCLOSED 88DB
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.284016
≥1 USD $1.284016
Inventory: 1369
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Technical
Efficiency - Testing 800mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 88.00
Port Location Top
Power - Rated 800mW
Frequency Range 467.5Hz~10kHz
Power - Max 1W
Frequency - Self Resonant 550Hz
Impedance 8Ohms
Technology Magnetic
Type Low Profile
Termination Spring Type
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.630Lx0.354W 16.00mmx9.00mm
Series CMS
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Rectangular
Supply Chain
Factory Lead Time 14 Weeks
