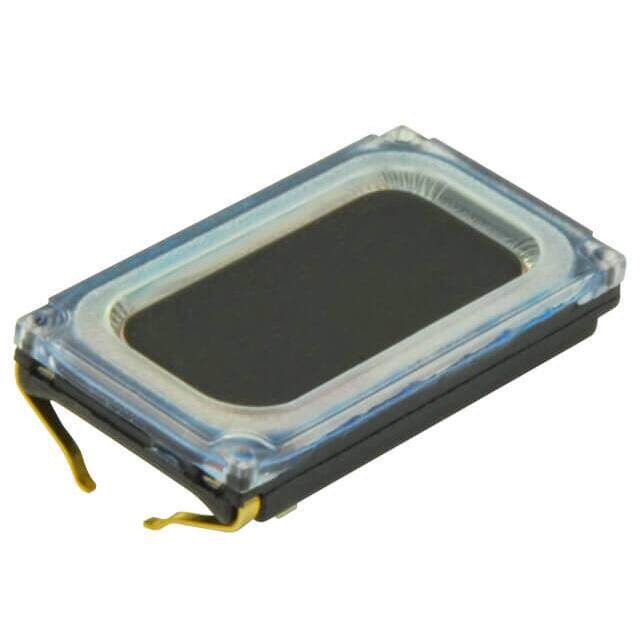

CMS-16093-078S-67
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
16 x 09 mm, Rectangular Frame, 0.7 W, 8 Ohm, Neodymium Magnet, Mylar Cone, Spring Contacts
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
≥10 USD $1.41768
≥100 USD $1.309088
≥500 USD $1.23046
≥1000 USD $1.154736
≥3000 USD $1.075422
Inventory: 1094
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Shape Rectangular
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Series CMS
Size / Dimension 0.630Lx0.354W 16.00mmx9.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Spring Type
Type General Purpose
Technology Magnetic
Ingress Protection IP67 - Dust Tight, Waterproof
Impedance 8Ohm
Frequency - Self Resonant 550Hz
Power - Max 1W
Frequency Range 100Hz~20kHz
Power - Rated 700mW
Port Location Top
Efficiency - dBA 91.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 700mW/100mm
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status RoHS Compliant
