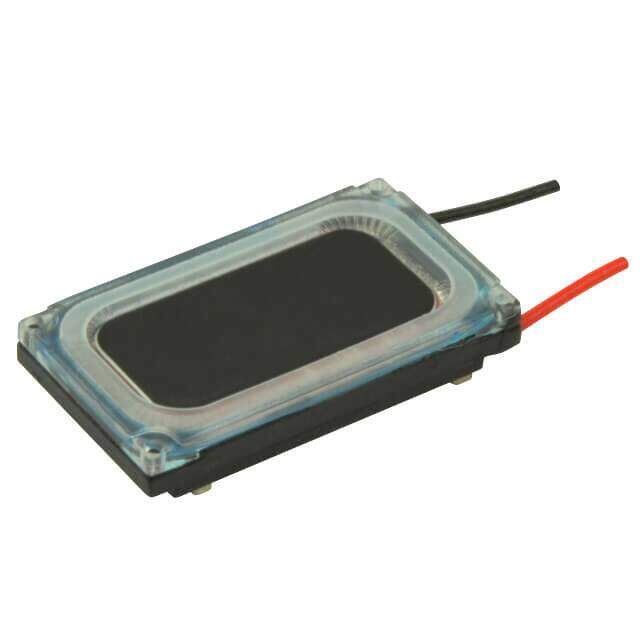

CMS-16093-076L100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 16 X 9MM ENCLOSED
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.6544
≥1 USD $1.6544
≥10 USD $1.3728
≥100 USD $1.267904
≥500 USD $1.19152
≥1000 USD $1.118216
≥3000 USD $1.041392
Inventory: 623
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Technical
Efficiency - Testing 700mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 90.00
Port Location Top
Power - Rated 700mW
Frequency Range 100Hz~20kHz
Power - Max 1W
Frequency - Self Resonant 600Hz
Impedance 6Ohm
Technology Magnetic
Type General Purpose
Termination Wire Leads
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.630Lx0.354W 16.00mmx9.00mm
Series CMS
Physical
Material - Magnet Nd-Fe-B
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Shape Rectangular
Supply Chain
Factory Lead Time 11 Weeks
