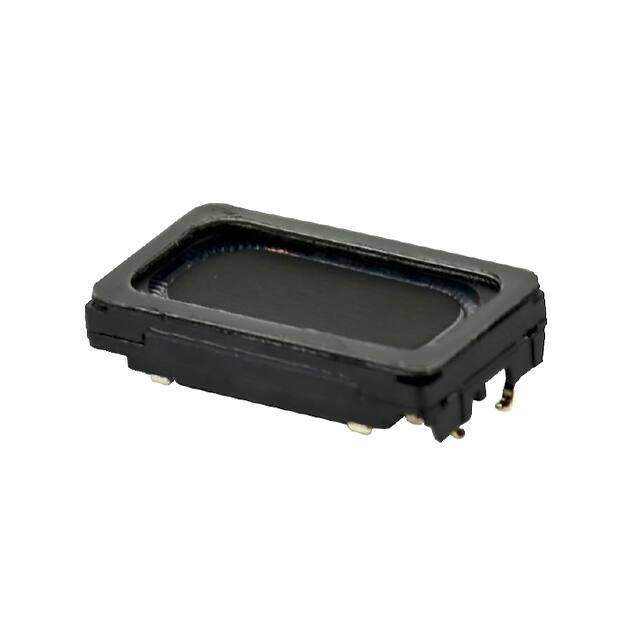

CMS-160918-30-SP
RoHS
/
Package /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 700MW TOP PORT
PDF
/
Buying Options
Total Price: USD $3.99
Unit Price: USD $3.98859
≥1 USD $3.98859
≥200 USD $1.591235
Inventory: 4334
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Shape Rectangular
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Technical
Packaging Tray
Published 2016
Series CMS
Size / Dimension 0.630Lx0.354W 16.00mmx9.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Pads
Type General Purpose
Technology Magnetic
Impedance 8Ohms
Frequency - Self Resonant 500Hz
Power - Max 1W
Frequency Range 400Hz~20kHz
Power - Rated 700mW
Port Location Top
Efficiency - dBA 87.50
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 700mW/100mm
Dimensions
Height Seated (Max) 0.138 3.50mm
Compliance
RoHS Status Non-RoHS Compliant
